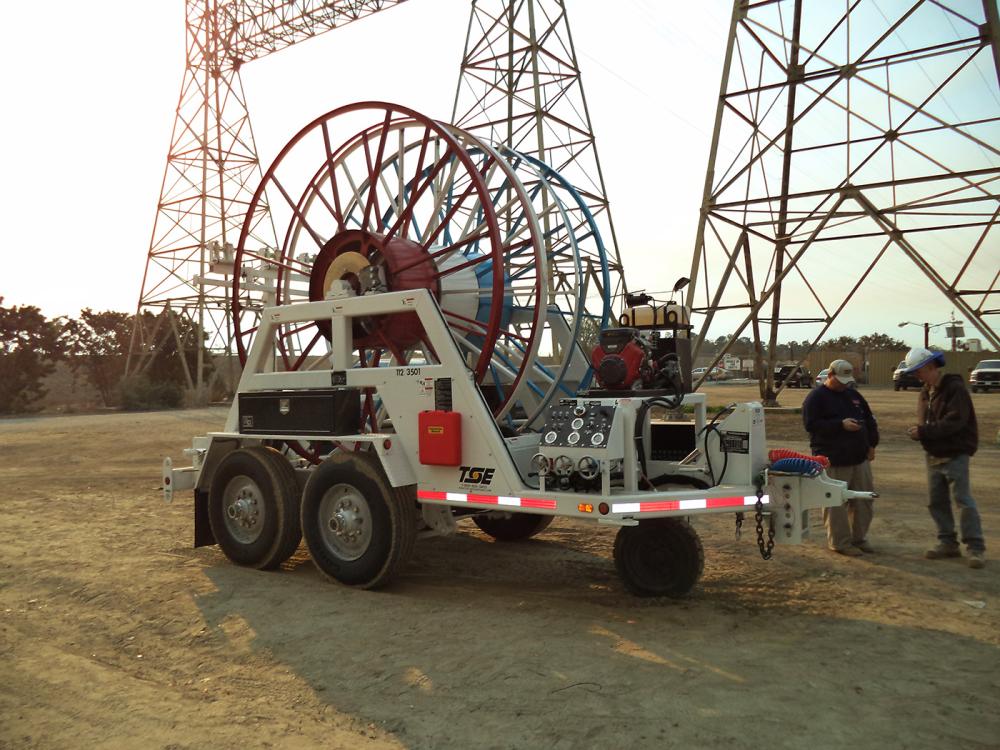

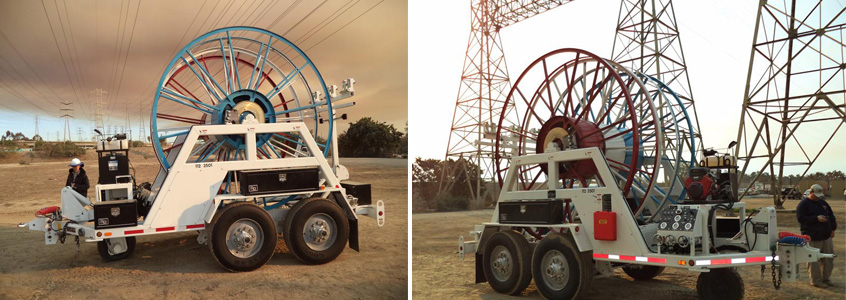

The TR-120-3 Underground Cable Reel Trailer is a 3-reel conductor payout trailer. With 20,000 lbs of payload capacity, this trailer is ideal for users with a wide variety of underground conductor installation jobs. Load up with conductor and work in a number of locations. It’s fast and convenient and it’s maneuverable.

• 3 independently driven reels for loading conductor reels can be driven in either direction
• 20,000 lbs. payload capacity
• 3,200 ft. of 1-1/4 inch aluminum core conductor
• Rear mounted capstan provides 4,000 lbs. of line pull to pull winch rope
• Drag brake on reels prevents overspin of reel during payout
• Rear wheel drive for the absolute best in on-site maneuverability
• Air brake system with emergency air/parking brake system.
• Smooth control hydraulic system powered by 14 HP diesel engine.
• Adjustable roller fairleads to guide conductor into manhole

• Wheel chocks
• Hydraulic tool circuit
• Beacon lighting and backup alarm
• 110V/120V electric generator
• Hydraulically maneuvered fairlead arm
• Remote engine control mounted at rear of trailer

• Maximum continuous torque: 36,000 in-lbs
• Maximum reel speed: 470 fpm at full reel speed (15 rpm)
• Linepull (full reel): 600 lbs.
• Linepull (bare reel): 1800 lbs.
• Max payload capacity: 20,000 lbs.
• Capstan linepull: 4000 lbs.
• Engine (diesel): 14 HP

• Length (approx): 207 inches
• Width (approx): 96 inches
• Height (approx): 156.5 inches
• Weight: 19,600 lbs
