Engineered solutions for underground cable handling

Timberland is the only manufacturer in the world with a complete line of equipment for removing old cable and installing new cable. Our superior hydraulics provide the power and control to efficiently handle a full range of underground cable applications including:

  • electric transmission and distribution lines
  • fiber-optic cables
  • telephone and data communications

Underground Puller Modules

7,000 lbs. Pullers

8,500 lbs. Pullers

Cable Pulling Reel Trailers

Puller-Tensioners (An underground option can be added to these models.)

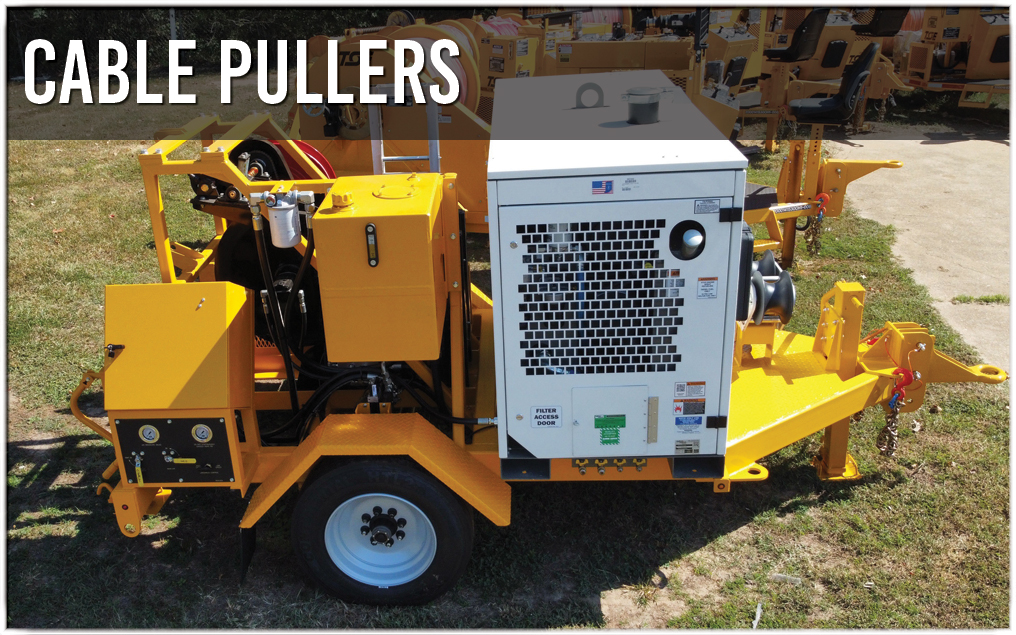

Cable Pullers

OK_Champion

OK_Champion

The Home of OK Champion Products

Timberland Equipment and TSE International are the home of OK Champion underground maintenance equipment for electric power, sewer and communications systems. The Timberland Group announced the purchase of the former assets and intellectual property of OK Champion on July 20, 2012. OK Champion of Hammond, Indiana, is a long time, well-respected designer and manufacturer of underground cable handling equipment with a history dating back to 1897.

OK Champion power rodders, cable scrappers and reel loaders are manufactured and marketed through TSE International Inc. in the United States, and globally through Timberland Equipment Limited.


Model

Max Tension

Bullwheel Dimension

Max Conductor dia.

lbs: 5500
daN: 2500

inches: 60
mm: 1524

inches: 1.7
mm: 43

lbs: 8818
daN: 4000

inches: 60
mm: 1524

inches: 1.7
mm: 43

lbs: 3000
daN: 1334

inches: 48
mm: 1200

inches: 1.25
mm: 32

lbs: 3000
daN: 1334

inches: 52
mm: 1320

inches: 1.25
mm: 32

lbs: 5000
daN: 2224

inches: 60
mm: 1524

inches: 1.875
mm: 48

lbs: 5000
daN: 2224

inches: 60
mm: 1524

inches: 1.7
mm: 43

lbs: 5000
daN: 2224

inches: 60
mm: 1524

inches: 1.5
mm: 38

lbs: 9909
daN: 4500

inches: 60
mm: 1524

inches: 1.39
mm: 35

lbs: 22481
daN: 10000

inches: 60
mm: 1524

inches: 1.7
mm: 43

lbs: 30000
daN: 13345

inches: 60
mm: 1524

inches: 1.7
mm: 43


Model

Continuous Linepull

Bullwheel Dimension

V-Groove Tensioners

5,000 lbs
2,268 kg

inches: 54
mm: 1,371

lbs: 10,000
kg: 4,536

inches: 72

mm: 1,664

lbs: 10,000
kg: 4,535

inches: 72
mm: 1,828


Model

Max Linepull

Bullwheel Dimension

Bullwheel Tensioners

lbs: 5,000
kg: 2,268

inches: 54
mm: 1,371

lbs: 10,000

kg: 4,536

inches: 52

mm: 1,320

lbs: 12,000
kg: 5,443

inches: 60
mm: 1,524


Model

Continuous Linepull

Speed

130,000 in-lbs
57,829 daN-m

3 mph / 4.82 km/h

177,400 in.-lbs
78,914 daN-m

3 mph / 4.82 km/h

10,000 in.-lbs
4,448 daN-m

4 mph / 6.4 km/h

10,000 lbs
4,448 daN-m

4 mph / 6.4 km/h

20,000 in.-lbs
8,896 daN

4 mph / 6.4 km/h

33,000 in.-lbs
14,679 daN

4 mph / 6.4 km/h

30,000 in.-lbs
13,345 daN

3.5 mph / 5.63 km/h


Model

Continuous Linepull

Max Reel Size

Max Reel Weight:
8,000 lbs / 3,628 kg
12,000 lbs / 5,443 kg
15,000 lbs / 6,803 kg
20,000 lbs / 9,071 kg

Reel Diameter:
72 in / 1,828 mm
96 in / 2,438 mm
96 in / 2,438 mm
96 in / 2,438 mm

8,000 in.-lbs
3,559 daN

72 in / 1,828 mm

N/A

Reel Diameter:
72 in / 1,828 mm
96 in / 2,438
72 in / 1,828 mm

Max Reel Weight:
4,500 lbs. / 2,041 kg
7,000 lbs / 3,175 kg
11,000 lbs. / 4,989 kg

N/A

Reel Diameter:
72 in / 1828 mm
Max Reel Weight:
8,000 lbs / 3628.739 kg

N/A

Reel Diameter:
84 in / 2,100 mm

Max Reel Weight:
8,000 lbs / 3628.739 kg

N/A

Reel Diameter:
 72 in / 1828 mm

Max Reel Weight:
8,000 lbs / 3628.739 kg

Max Reel Weight:
5,000 lbs / 3,628 kg
5,000 lbs / 3,628 kg
7,000 lbs / 3,175 kg
5,000 lbs / 3,628 kg

Reel Diameter:
72 in / 1,828 mm
72 in / 1,828 mm
84 in / 2,100 mm
72 in / 1,828 mm

Pilot Line WInders

SPECIFICATIONS

• Four proven hydrostatic pulling systems with infinitely variable linespeed and linepull control.
• Skid mounted suitable for truck or trailer mount versions
• 5,000 lbs. of continuous linepull on each of four full drums.
• Heavy duty reels each with capacity for up to 30,000 ft. of 3/8” swaged steel wire rope.
• Spring applied, hydraulic pressure released holding brakes on each reel.
• Engraved operator’s console panel.
• 30,000 lbs. capacity front winch (for front mount version) with two speed ranges.
• Two heavy duty rear hydraulic stabilizers with lock valves.
• Four automatic diamond leadscrew levelwind systems for even spooling of rope onto reels.
• Freewheeling disconnect with 36 inch bronze disc brake on each reel.
• Quick change reel shaft system for ready reel removal and installation.

Icon

Pilot Line Winders Model SPLW 50-4

1 file(s) 310.45 KB
Download

Superline Rope

Icon

Superline Rope

1 file(s) 1,018.17 KB
Download

Water Moccasin Rope


Icon

Water Moccasin Rope

1 file(s) 991.04 KB
Download

STANDARD EQUIPMENT
• Fully hydraulic drive system
• Infinitely variable speed and linepull control
• Automatic overpull protection system
• Single axle trailer mounted with electric trailer brakes and highway lighting package
• One front and two rear jacks
• Free wheeling disconnect
• Bronze disc overspin brake
• Operator’s seat and protective screen

OPTIONS
• Hydraulic front jack
• Diesel engine
• Chart recorder printer

SPECIFICATIONS
• Max. continuous torque: 31,000 in.-lbs.
• Average linespeed: 3 mph
• Max. continuous linepull: 1,300 lbs.*
• Drum diameter: 44 inches
• Drum width: 32.5 inches
• Drum capacity, synthetic rope: 18,000 ft of 3/8”
• Power (gasoline): 20 HP Air Cooled

DIMENSIONS & WEIGHT (APPROX.)
• Length: 14 ft.
• Width: 7 ft. 6 in.
• Height: 6 ft. 5 in.
• Weight: 5,000 lbs.

Icon

Fiber Optic Puller PDF

1 file(s) 855.11 KB
Download


Model

Max Tension

Bullwheel Dimension

Max Conductor dia.

3505 U-Mount 2V-Groove Tensioner

lbs: 1500
daN: 667

inches: 20
mm: 508

inches: 0.563
mm: 14

3502 U-Mount V-Groove Tensioner

lbs: 3000

daN: 1334

inches: 36

mm: 914

inches: 1.25

mm: 32

3504 U-Mount Bullwheel Tensioner

lbs: 3000
daN: 1334

inches: 36
mm: 914

inches: 1.25
mm: 32

T30/36 BWRC Tensioner

lbs: 3000
daN: 1334

inches: 36
mm: 915

inches: 1.25
mm: 32

T30H/36 VGRC Tensioner

lbs: 3000
daN: 1334

inches: 36
mm: 915

inches: 1.25
mm: 32

T50/42 BW Tensioner

lbs: 5000
daN: 2224

inches: 48
mm: 1219

inches: 1.39
mm: 35

T50/48 BW Tensioner

lbs: 5000
daN: 2224

inches: 52
mm: 1321

inches: 1.39
mm: 35

T50/52 BWRC Tensioner

lbs: 5000
daN: 2224

inches: 52
mm: 1321

inches: 1.39
mm: 35

T50/52 DD BWRC Tensioner

lbs: 5000
daN: 2224

inches: 52
mm: 1321

inches: 1.39
mm: 35


Model

Continuous Torque Rating

Continuous Linepull Rating

588 daNm
52,000 in-lbs

3,450 lbs with 6,000 ft of 5/8” rope

1,565 kg with 1,829m of 16 mm rope

790 daNm
70,000 in-lbs

4,350 lbs. with 6,000 ft. of 5/8” rope on drum

1,973 kg with 1829 m of 16mm rope on drum

7,541 N-m
66,750 in-lbs

4,000 lbs with 6,000 ft of 5/8 inch  rope on pulling reel1,779

1,779 daN with 1829 m of 16 mm
rope on pulling reel

1,085 daNm
110,000 in-lbs

5,000 lbs
2,224 daN

1,468 daNm
150,000 in-lbs

6,100 lbs
2,713 daN



5,000 lbs
2,224 daN

5,000 lbs
2,268 daN


Model

Continuous Linepull

Maximim Linespeed

1,000 in.-lbs
445 daN

1,000 in.-lbs
445 daN



2,000 lbs
890 daN

3 mph
4.8 km/h

1,650 lbs
734 daN

3 mph
4.8 km/h 4 mph

70,000 in-lbs
31,139 daN-m

4 mph
6.43 km/h 4 mph

92,000 in.lbs
40,925 daN-m

4 mph
6.43 km/h 4 mph

92,000 in.lbs
40,925 daN-m

4 mph
6.43 km/h 4 mph

92,000 in.lbs
40,925 daN-m

4 mph
6.43 km/h 4 mph

92,000 in.lbs
40,925 daN-m

4 mph
6.43 km/h 4 mph

130,000 in.-lbs.
57,829 daN-m

4 mph
6.43 km/h 4 mph


Model

Continuous Linepull

Max Reel Size

8,000 in.-lbs
3,559 daN

72 in / 1,828 mm

N/A

Reel Diameter:
72 in / 1,828 mm
96 in / 2,438
72 in / 1,828 mm

Max Reel Weight:
4,500 lbs. / 2,041 kg
7,000 lbs / 3,175 kg
11,000 lbs. / 4,989 kg

N/A

Reel Diameter:
84 in / 2,100 mm

Max Reel Weight:
8,000 lbs / 3628.739 kg

N/A

Reel Diameter:
 72 in / 1828 mm

Max Reel Weight:
8,000 lbs / 3628.739 kg

Max Reel Weight:
5,000 lbs / 3,628 kg
5,000 lbs / 3,628 kg
7,000 lbs / 3,175 kg
5,000 lbs / 3,628 kg

Reel Diameter:
72 in / 1,828 mm
72 in / 1,828 mm
84 in / 2,100 mm
72 in / 1,828 mm

Superline Rope

Icon

Superline Rope

1 file(s) 1,018.17 KB
Download

Water Moccasin Rope


Icon

Water Moccasin Rope

1 file(s) 991.04 KB
Download

STANDARD EQUIPMENT
• Fully hydraulic drive system
• Infinitely variable speed and linepull control
• Automatic overpull protection system
• Single axle trailer mounted with electric trailer brakes and highway lighting package
• One front and two rear jacks
• Free wheeling disconnect
• Bronze disc overspin brake
• Operator’s seat and protective screen

OPTIONS
• Hydraulic front jack
• Diesel engine
• Chart recorder printer

SPECIFICATIONS
• Max. continuous torque: 31,000 in.-lbs.
• Average linespeed: 3 mph
• Max. continuous linepull: 1,300 lbs.*
• Drum diameter: 44 inches
• Drum width: 32.5 inches
• Drum capacity, synthetic rope: 18,000 ft of 3/8”
• Power (gasoline): 20 HP Air Cooled

DIMENSIONS & WEIGHT (APPROX.)
• Length: 14 ft.
• Width: 7 ft. 6 in.
• Height: 6 ft. 5 in.
• Weight: 5,000 lbs.

Icon

Fiber Optic Puller PDF

1 file(s) 855.11 KB
Download

GREENMACHINE®

The Original Electric-Battery Powered Puller, Puller/Tensioner, Underground Puller & Sewer Rodder.

• ENVIRONMENTALLY FRIENDLY
• LESS OPERATING NOISE
• BEST IN CLASS CONTROL
• LOW MAINTENANCE
• REGENERATES POWER

The frustrations are gone - no more worries about hydraulic leaks and machine downtime, unnecessary air pollution and hazardous noise concerns of a standard diesel engine Puller/Tensioner. The GREENMACHINES® are powered through a modern, quiet, regenerative electric motor that directly drives the machine, eliminating the inefficiencies and added operational costs of a diesel engine and hydraulic system. It provides long lasting power to complete even the toughest, most demanding jobs. This ground-breaking technology uses clean, regenerative energy and reduces unwanted, hazardous noise pollution to the point where an operator and linemen can talk to each other at normal volume without radios while the machine is running.

On-Site Demo Program

To fully judge how effective the GREENMACHINE® truly is, we encourage you to take advantage of our On-Site Demo Program.

We’ll bring a unit to your job site so your team can experience the distinct advantages of Timberland Equipment’s GREENMACHINE® firsthand out in the field.

For further information, please fill out the GREENMACHINE® Inquiry Form.



    Standard Equipment

    • Single planetary bullwheel design: Standard
    • Multi position leveling jacks:  Standard, manual (1 front, 2 rear)
    • Remote hydraulics:  Standard
    • Electric start:  Standard
    • Max. usable cable capacity – ft (m):  2,000 (610)
    • Downrigger mast extension:  Optiona

    • Rig Size L/W/H – in (m): 159/81/66 (404/206/168)
    • Weight – lb (kg)*: 7,000 (3,175)*
    • Max. pulling force – tons (t): 20 (18.1)
    • Engine – HP (kw): 36 (26.5)
    • Engine manufacturer/model: Kubota V1505, Diesel
    • Cooling system: Water cooled
    • Downrigger length – ft (m): 19 (5.79)
    • Cable diameter – in (mm): .875 (22)
    • Cable weight – lb (kg): 2,840 (1,288)
    • Standard usable cable length - ft (m): 1,250 (381)
