STANDARD FEATURES
• Infinitely variable speed control
• Infinitely variable maximum linepull control
• Spring applied hydraulic released reel brake
• Powered steering nosewheel for self-propelling the unit without tow vehicle
• Hydraulic front and rear jacks
• Self-loading reel arms with dual drives
• Variable displacement, closed loop hydraulic system for inching control
• 25,000 Single axle with dual wheels

OPTIONS
• Hydraulically powered capstan
• 2,000 lb. Pilot rope winch
• Radio remote control pendants
• 500W Generator
• Auxiliary hydraulic tool circuit

SPECIFICATIONS
• Maximum Reel Torque: 230,000 lbs. in.
• Maximum Reel Speed: 0-12 rpm (infinitely variable)
• Maximum Reel Diameter: 108"
• Minimum Reel Diameter: 48"
• Maximum Reel Width: 65"
• Minumum Reel Width: 38"
• Maximum Reel Weight: 16,000 lbs. (not legal for US Highways)
• Engine Power: 44 hp

DIMENSIONS & WEIGHT (APPROX.)
• Length: 210”
• Width: 96”
• Height: 125”
• Weight:  (without reel): 12,900 lbs.
• GVWR: 24,000 lbs.

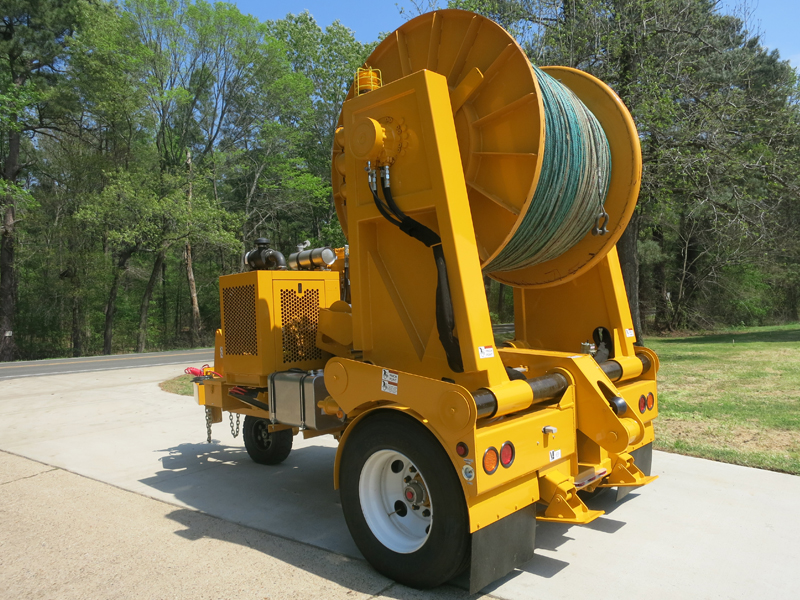

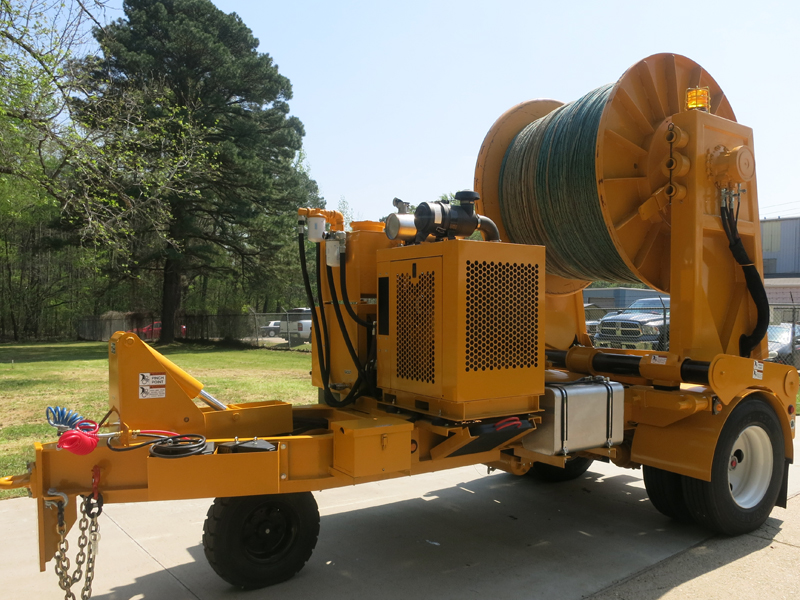

CT14 PullerPhotos
