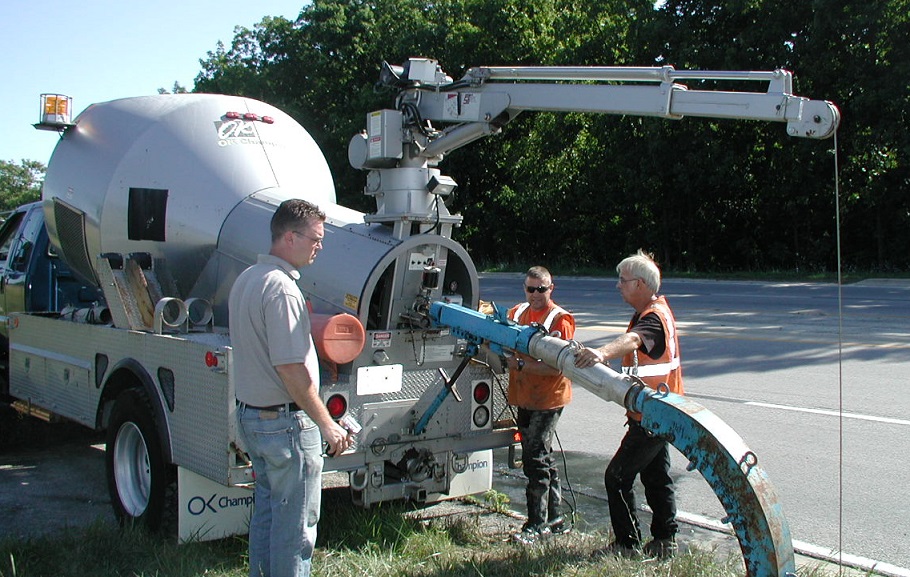

CP6600 and CP6625 CABLE PULLER
• GVWR: 27,500 lbs. minimum
• FAWR: 9,000 lbs. minimum
• RAWR: 18,500 lbs. minimum
• CA 138” - 133” minimum clearance between rear axle and any chassis accessories (exhaust, fuel/air/ dpf tanks etc.) If truck with longer CA is furnished, space will be left between the back of the cab and the front of the bed.
• AF 65 3/4”
• Frame width 34”
• Maximum tire size: 11R 22.5
• 30 Gallon gas tank is located extreme forward on the left side or under the cab.
• Vertical Exhaust
• 5 or 6 speed transmission. Transmissions with electronic controls may require optional electric controls may require optional electric controls for Power Take Off operation
• Variable throttle body builder connector
• PTO control switch
• Factory switch panels
