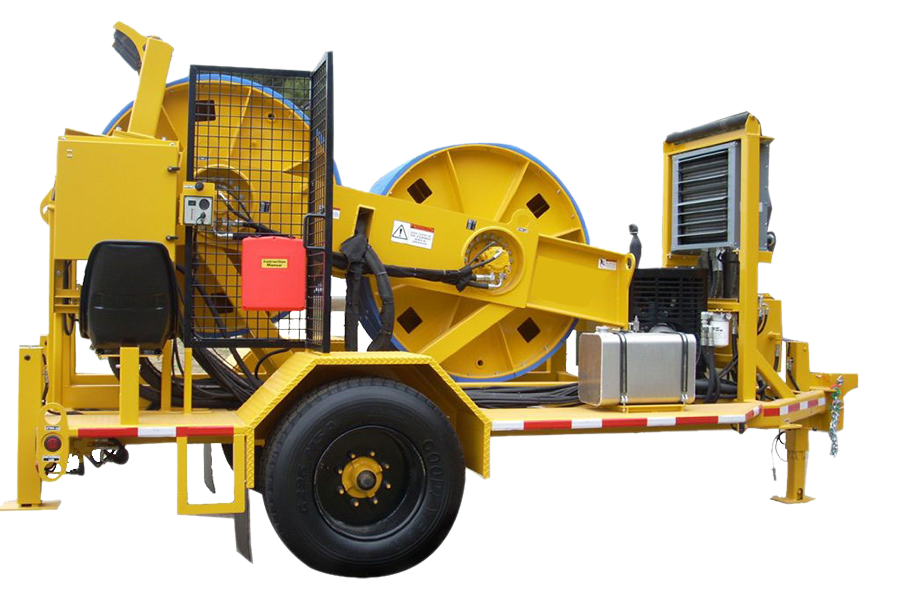

Tensioning Equipment for transmission conductor stringing

Timberland builds the most complete line of pullers in the industry for tensioning single-conductor up to 6 and 8 bundle projects.

Our line-up includes a full range of drum-type tensioners as well as bullwheel tensioners in sizes up to 108″ (2740 mm).

Tensioners

Model	Max Tension	Bullwheel Dimension	Max Conductor dia.
T25-1H/1DD Tensioner	lbs: 5500  daN: 2500	inches: 60 mm: 1524	inches: 1.7 mm: 43
T40-1H/1D Tensioner	lbs: 8818 daN: 4000	inches: 60 mm: 1524	inches: 1.7 mm: 43
T50-1H/2DD Tensioner	lbs: 3000 daN: 1334	inches: 48 mm: 1200	inches: 1.25 mm: 32
T50/52 BWRC Tensioner	lbs: 3000 daN: 1334	inches: 52 mm: 1320	inches: 1.25 mm: 32
T50/60 BW Bullwheel Tensioner	lbs: 5000 daN: 2224	inches: 60 mm: 1524	inches: 1.875 mm: 48
T60-1H/2DD	lbs: 13488 daN: 6000	inches: 48 mm: 1200	inches: 1.7 mm: 43
T75-1H/2DD Tensioner	lbs: 16500 daN: 7500	inches: 60 mm: 1500	inches: 1.7 mm: 43
T75-2H/2DD Tensioner	lbs: 5000 daN: 2224	inches: 60 mm: 1524	inches: 1.7 mm: 43
T100-2H/2DD Tensioner	lbs: 22000 daN: 10000	inches: 59 mm: 1500	inches: 1.7 mm: 43
T100-2H/3DD Tensioner	lbs: 7370 daN: 3350	inches: 63 mm: 1600	inches: 1.8 mm: 46
T120-2H/4DD Tensioner	lbs: 13488 daN: 6000	inches: 48 mm: 1200	inches: 1.7 mm: 43
T140-2H/2DD Tensioner	lbs: 15400 daN: 7000	inches: 63 mm: 1600	inches: 1.8 mm: 45.7
T150-2H/4DD Tensioner	lbs: 16534 daN: 7500	inches: 60 mm: 1500	inches: 1.7 mm: 43
T150-4H/4 Tensioner	lbs: 5000 daN: 2224	inches: 60 mm: 1524	inches: 1.5 mm: 38
T180-4H/4 Tensioner	lbs: 9909 daN: 4500	inches: 60 mm: 1524	inches: 1.39 mm: 35
T200-4H/4 BW Tensioner	lbs: 22481 daN: 10000	inches: 60 mm: 1524	inches: 1.7 mm: 43
T300-3H/3 BW Tensioner	lbs: 30000 daN: 13345	inches: 60 mm: 1524	inches: 1.7 mm: 43
