Performance Features

  • Maximum Pull / Tension 2 x 7500 daN (16,534 lbs.)
  • 4 x 3750 daN (8,267 lbs.)
  • Maximum Linespeed 5 km/hr (3.1 mph)

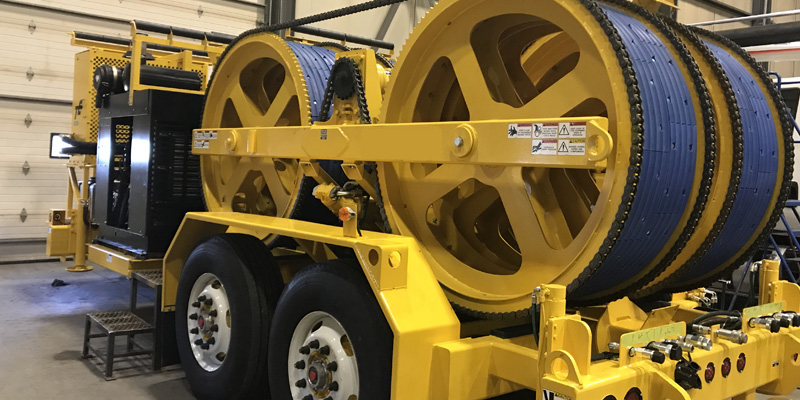

Tensioner Bullwheel Specifications

  • Bullwheel diameter 1500 mm (60”)
  • Wear resistant nylon bullwheel segments
  • 5 grooves per bullwheel set
  • Maximum conductor diameter 43 mm (1.7”)

Physical Dimensions

  • Weight (Approx.) TBD
  • Length (Approx.) 5588 mm (220”)
  • Width (Approx.) 2350 mm (92”)
  • Height (Approx.) 2310 mm (91”)
