Underground Minejack® Personnel Carrier Utility Vehicles

Heavy duty diesel powered articulated four-wheel drive vehicles in a broad range of sizes and frame configurations

Since their introduction in the mid-sixties, ‘Minejack® Carriers’ have earned a solid reputation for performance and durability. This reputation for tough, hard-working equipment is backed by our experience in building over 30,000 heavy duty articulated frame off-road vehicles for the mining and logging industries.

Before you make a move with new equipment, take a close look at the Minejack® Carriers.

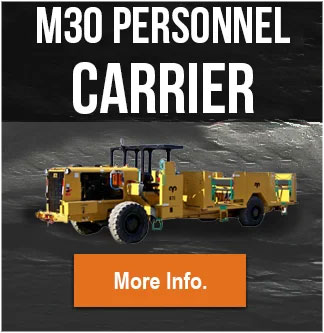

M30 Personnel Carrier

General Equipment
• Bench seats w/seat belts
• Front tow bumper
• Fire extinguisher bracket
• Wheel chock bracket
• Ansul 4 nozzle fire suppression package (LVS)
• Forward facing operator seat

Technical Specifications:

Engine
• Tier lll approved engine: 4-cylinder
- Cummins QSB4.5, 140 HP (104 kW) @2400 rpm
• Liquid-cooled, turbo charged
• 113.5 L (25 gal) fuel tank
• AKG radiator

Transmission
• Dana Clark 20,000 standard shift transmission
• Three speed forward and reverse
• 4-wheel drive

Exhaust System
• Catalytic converter w/silencer

Axles
• Dana 113N front and rear axle package

Tires
• 9:00 x 20 solid tires

Steering
• Orbital steering
• 40° articulation each direction

Brake System
• Fully hydraulic wet disc service brakes on each axle
• Spring applied, hydraulic pressure-release wet disc secondary and park brake

Electrical System
• 24 V electrical w/ fire resistant wires
• Backup alarm (107 dB)
• Two (2) forward & Two (2) reverse LED drive lights
• Lockable master switch
• One (1) strobe light

Instrumentation
• Engine temperature & pressure warning lights
• Transmission temperature & pressure warning gauges
• Engine temperature & pressure warning gauges
• Hour meter
• Voltmeter
• Parking brake applied warning light

Hydraulic System
• 10-micron filter
• 100 L (22 gal) hydraulic reservoir
• JIC hydraulic fittings & Aeroquip hoses

M40 ANFO Loader
Icon

M30 Personnel Carrier PDF

1 file(s) 2.46 MB
Download

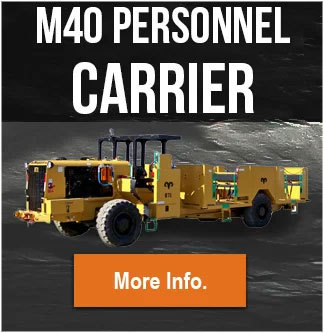

M40 Personnel Carrier

Technical Specifications:

Engine
• Tier lll approved engine – 4 cylinder
• Cummins QSB4.5, 140 HP (104 kW) @2400 rpm
• Liquid-cooled, turbo charged
• 220 L (48.4 gal) fuel tank
• AKG radiator

Transmission
• Dana Clark 32,000 standard shift transmission
• Four speed forward and reverse
• 4-wheel drive

Exhaust System
• Catalytic converter w/silencer

Axles
• Dana 123 front and rear axle package

Tires
• 10:00 x 20 solid tires

Steering
• Orbital steering
• 37° Articulation each direction

Brake System
• Fully hydraulic wet disc service brakes on each axle
• Spring applied, hydraulic pressure-release wet disc secondary and park brake

Hydraulic System
• 99 L (21.7 gal) hydraulic reservoir
• JIC hydraulic fittings & Aeroquip hoses

Electrical System
• 24 V electrical w/ fire resistant wires
• Backup alarm (107 dB)
• Two (2) forward & Two (2) reverse LED drive lights
• Lockable master switch
• One (1) strobe light

Instrumentation
• Engine temperature & pressure warning lights
• Transmission temperature & pressure warning gauges
• Engine temperature & pressure warning gauges
• Hour meter
• Volt meter
• Parking brake applied warning light

General Equipment
• Front tow bumper
• Fire extinguisher bracket
• Wheel chock bracket
• Ansul 4 nozzle fire suppression package (LVS)
• Side facing operator seat
• Bench Seating with Seatbelts

Additional Options
• ROPS / FOPS canopy
• ROPS / FOPS enclosed cab including air-conditioning, heat w/ insulation and cab mounted lighting
• Air ride seat
• Cold weather package
• Air / water header assembly
• Fire extinguisher
• Jump start receptacle
• Rear ROPS / FOPS canopy
• Rear ROPS / FOPS enclosed cab including air conditioning and heater
• Rear frame suspension
• Bench or individual passenger seats with seat belts
• 6 nozzle fire suppression
• Checkfire
• Rear tow bumper
• Front & rear tow hooks
• Tier 3 engine with DPF filter
• Mercedes MB904 Tier lll engine
• Cummins tier IV QSB4.5 engine
• Front & Rear lifting lugs
• Stick steering
• Front facing operator seat
• Graco or Lincoln automatic lubrication system
• Firwin blanket
• HTI wrap
• Rear brake lights
• Speedometer
• Tachometer
• 120 V inverter
• Wheel chocks
• Wiggins fuel fill
• Mesabi or Copper Core radiator
• Tire chains
• 10:00 x 20 pneumatic tires
• 10:00 x 20 flex tires
• Mud flaps
• 14 or 19 rear passenger configuration
