Mobile Minejack^® Scissor Lift Utility Vehicles

This four-wheel drive, center-articulated carrier is specifically designed and manufactured to provide a safe, stable, horizontal surface for workers to perform duties such as roof bolting, surveying, screening and many other projects.

To overcome the inherent limits of vertical-only movement, a slide deck can be added which allows crews to extend the work platform closer to their work area.

The front and rear frame weldments of the carrier are covered by our 8-year warranty against manufacturing or design defects.

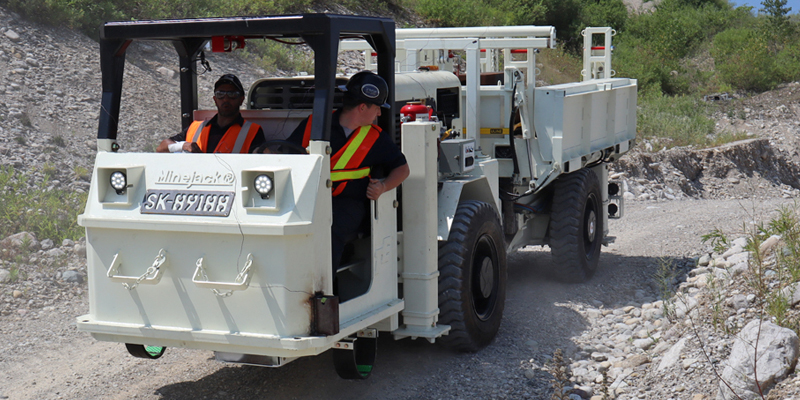

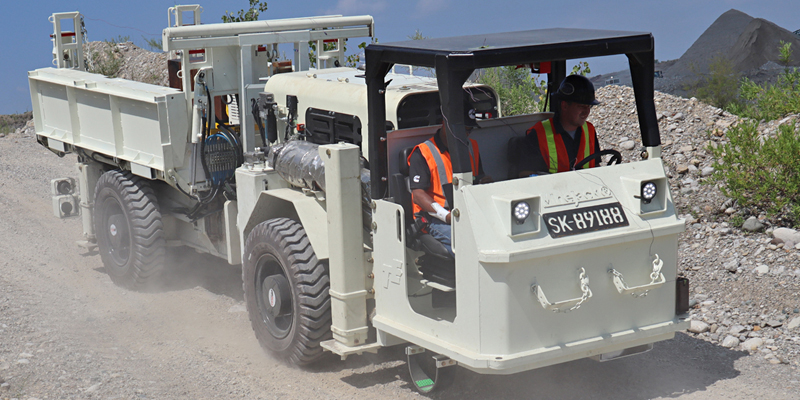

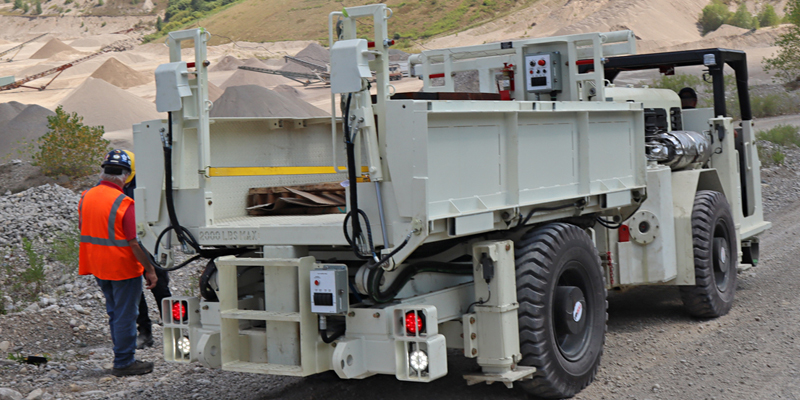

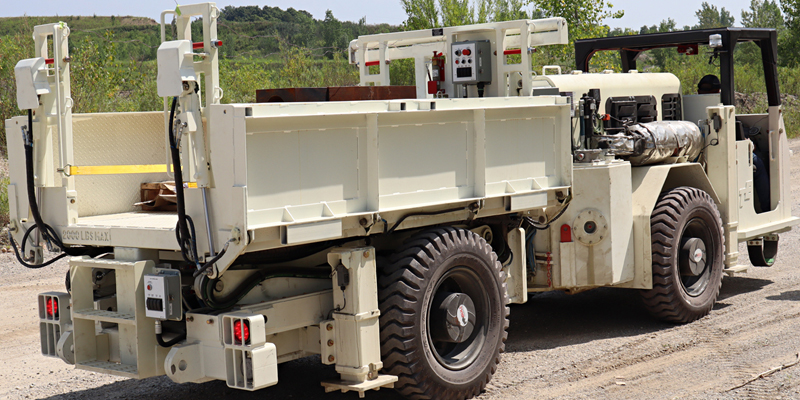

M30 Scissor Lift

General Features
• Front tow bumper
• Fire extinguisher bracket
• Wheel chock bracket
• Ansul 4 nozzle fire suppression package (LVS)
• Forward facing operator and passenger seat
• 1829 mm x 2743mm (72 in x 108 in) fixed deck w/ solid hand-rails & 907 kg (2000 lbs) lifting capacity
• 4319 mm (170 in) lift height to top deck
• Four (4) 406 mm (16 in) jacks, two (2) front and two (2) rear

CARRIER FEATURES
• 24 V Electrical w/ Bostrig Fire Resistant Wires
• Engine Temperature & Pressure Warning Lights
• Transmission / Engine Temperature & Pressure Warning Gauges
• Backup Alarm
• Two (2) Forward & Two (2) Reverse Drive Lights
• One (1) Strobe Light
• Lockable Master Switch
• Hour Meter
• Volt Meter
• JIC Hydraulic Fittings & Aeroquip Hoses
• Orbital Steering
• Forward Facing Compartment
• Mechanical Seats w/ Seat Belts
• ECS Catalytic Converter w/ Silencer
• Donaldson Dry Type Intake w/ Safety Element
• Front Tow Bumper
• Fire Extinguisher Bracket
• Wheel Chock Bracket

SCISSOR LIFT STANDARD FEATURES
• 6' X 9' Fixed Deck w/ Solid Handrails & 2,000 lbs. Lifting Capacity
• 14' 2" Lift Height to Top of Deck
• Two (2) 16” Rear Jacks
• Two (2) 39” Front Jacks

Engine
• Tier lll approved engine – 4 cylinder
• Cummins QSB4.5, 140 HP (104 kW) @2400 rpm
• Liquid-cooled, turbo charged
• 113.5 L (25 gal) fuel tank
• AKG radiator

Transmission
• Dana Clark 20,000 standard shift transmission
• Three-speed forward and reverse
• 4-wheel drive

Exhaust System
• Catalytic converter w/silencer

Axles
• Dana 113N front and rear axle package

Tires
• 9:00 x 20 solid tires

Steering
• Orbital steering
• 40° articulation each direction

Brake System
• Fully hydraulic wet disc service brakes on each axle
• Spring applied, hydraulic pressure-release wet disc secondary and park brake

Electrical System
• 24 V electrical w/ fire resistant wires
• Backup alarm (107 dB)
• Two (2) forward & Two (2) reverse LED drive lights
• Lockable master switch
• One (1) strobe light

Instrumentation
• Engine temperature & pressure warning lights
• Transmission temperature & pressure warning gauges
• Engine temperature & pressure warning gauges
• Hour meter
• Volt meter
• Parking brake applied warning light

Hydraulic System
• 10-micron filter
• 100 L (22 gal) hydraulic

M30 Scissor Lift PDF

1 file(s) 12.00 KB

Download

M40 RL 4000 SD Scissor Lift

Technical Specifications

Engine
• Tier lll approved engine – 4 cylinder
• Cummins QSB4.5, 140 HP (104 kW) @2400 rpm
• Liquid-cooled, turbo charged
• 220L (48.4 gal) fuel tank
• AKG radiator

Transmission
• Dana Clark 20,000 standard shift transmission
• Three speed forward and reverse
• 4-wheel drive

Exhaust System
• Catalytic converter w/silencer

Axles
• Dana 123 front and rear axle package

Tires
• 10:00 x 20 solid tires

Steering
• Orbital steering
• 37° articulation each direction

Brake System
• Fully hydraulic wet disc service brakes on each axle
• Spring applied, hydraulic pressure-release wet disc secondary and park brake

Electrical System
• 24 V electrical w/ fire resistant wires
• Backup alarm (107 dB)
• Two (2) forward & Two (2) reverse LED drive lights
• Lockable master switch
• One (1) strobe light

Hydraulic System
• 99 L (21.7 gal) hydraulic reservoir
• JIC hydraulic fittings & Aeroquip hoses

General Equipment
• Front tow bumper
• Fire extinguisher bracket
• Wheel chock bracket
• Ansul 4 nozzle fire suppression package (LVS)
• Side facing operator seat
• Single stage scissor lift with 1814 kg (4000 lbs) lifting capacity
• Lifting height of approximately 2896 mm (114 in)
• Four (4) 990 mm (39 in) jacks (two on the front and two on the rear)

Additional Options
• ROPS / FOPS canopy
• ROPS / FOPS enclosed cab including air-conditioning, heat w/ insulation and cab mounted lighting
• Air ride seat
• Cold weather package
• Air / water header assembly
• Fire extinguisher
• Jump start receptacle
• Manual fold down deck wings
• Hydraulic fold down wings
• 1219 mm (48 in) front and rear jacks
• Storage box for scaling
• Remote engine start/stop
• Remote control operation w/ creep speed system
• Pipe handler attachment
• 6 nozzle fire suppression
• Checkfire
• Rear tow bumper
• Front & rear tow hooks
• Tier III engine with DPF filter
• Mercedes MB904 Tier lll engine
• Cummins tier IV QSB4.5 engine
• Front & Rear lifting lugs
• Stick steering
• Front facing operator seat
• Graco or Lincoln automatic lubrication system
Firwin blanket
• HTI wrap
• Rear brake lights
• Speedometer
• Tachometer
• 120 V inverter
• Wheel chocks
• Wiggins fuel fill
• Mesabi or Copper Core radiator
• Tire chains
• 10:00 x 20 solid tires
• 10:00 x 20 pneumatic tires
• 10:00 x 20 flex tires

M40 RL 4000 Scissor Lift PDF

1 file(s) 335.89 KB

Download

M40 HL 6000 SD Scissor Lift

Technical Specs

Engine
• Tier lll approved engine – 4 cylinder
• Cummins QSB4.5, 140 HP (104 kW) @2400 rpm
• Liquid-cooled, turbo charged
• 220 L (48.4 gal) fuel tank
• AKG radiator

Transmission
• Dana Clark 32,000 standard shift transmission
• Four speed forward and reverse
• 4-wheel drive

Exhaust System
• Catalytic converter w/silencer

Axles
• Dana 123 front and rear axle package

Tires
• 10:00 x 20 solid tires

Steering
• Orbital steering
• 37° Articulation each direction

Brake System
• Fully hydraulic wet disc service brakes on each axle
• Spring applied, hydraulic pressure release wet disc secondary and park brake

Additional Options
• ROPS / FOPS canopy
• ROPS / FOPS enclosed cab including air-conditioning, heat w/ insulation and cab mounted lighting
• Air ride seat
• Cold weather package
• Air / water header assembly
• Fire extinguisher
• Jump start receptacle
• Manual fold down deck wings
• Hydraulic fold down wings
• 1219 mm (48 in) front and rear jacks
• Storage box for scaling
• Remote engine start/stop
• Remote control operation w/ creep speed system
• Pipe handler attachment
• 6 nozzle fire suppression
• Checkfire
• Rear tow bumper
• Front & rear tow hooks
• Tier III engine with DPF filter
• Mercedes MB904 Tier lll engine
• Cummins tier IV QSB4.5 engine
• Front & Rear lifting lugs
• Stick steering
• Front facing operator seat
• Graco or Lincoln automatic lubrication system
• Remote control operation w/ creep speed system
• Pipe handler attachment
• 6 nozzle fire suppression
• Checkfire
• Rear tow bumper
• Front & rear tow hooks
• Tier III engine with DPF filter
• Mercedes MB904 Tier lll engine
• Cummins tier IV QSB4.5 engine
• Front & Rear lifting lugs
• Stick steering
• Front facing operator seat
• Graco or Lincoln automatic lubrication system

M40 HL 6000 SD Scissor Lift

1 file(s) 342.82 KB

Download

M40 UHL 6000 SD Scissor Lift

Technical Specs

Engine
• Tier lll approved engine – 4 cylinder
• Cummins QSB4.5, 140 HP (104 kW) @2400 rpm
• Liquid-cooled, turbo charged
• 220 L (48.4 gal) fuel tank
• AKG radiator

Transmission
• Dana Clark 32,000 standard shift transmission
• Four-speed forward and reverse
• 4-wheel drive

Exhaust System
• Catalytic converter w/silencer

Axles
• Dana 123 front and rear axle package

Tires
• 10:00 x 20 solid tires

Steering
• Orbital steering
• 37° Articulation each direction

Brake System
• Fully hydraulic wet disc service brakes on each axle
• Spring applied, hydraulic pressure-release wet disc secondary and park brake

Electrical System
• 24 V electrical w/ fire resistant wires
• Backup alarm (107 dB)
• Two (2) forward & Two (2) reverse LED drive lights
• Lockable master switch
• One (1) strobe light

General Equipment
• Front tow bumper
• Fire extinguisher bracket
• Wheel chock bracket
• Ansul 4 nozzle fire suppression package (LVS)
• Duel stage scissor lift with 2721 Kg (6000 lbs) lifting capacity
• Lifting height of approximately 4115 mm (162 in)
• Four (4) 990 mm (39in) jacks (two on the front and two on the rear)
• Side facing operator seat

Additional Options
• ROPS / FOPS canopy
• ROPS / FOPS enclosed cab including air-conditioning, heat w/ insulation and cab mounted lighting
• Air ride seat
• Cold weather package
• Air / water header assembly
• Fire extinguisher
• Jump start receptacle
• Manual fold down deck wings
• Hydraulic fold down wings
• 1219 mm (48 in) front and rear jacks
• Storage box for scaling
• Remote engine start/stop
• Storage box for scaling
• Remote engine start/stop
• Remote control operation with creep speed system
• 6 nozzle fire suppression
• Ansul 4 nozzle fire suppression package (LVS)
• Checkfire
• Rear tow bumper
• Front & rear tow hooks
• Tier III engine with DPF filter
• Mercedes MB904 Tier lll engine
• Cummins tier IV QSB4.5 engine
• Front & Rear lifting lugs
• Stick steering
• Front facing operator seat
• Graco or Lincoln automatic lubrication system
• Firwin blanket
• HTI wrap
• Rear brake lights
• Speedometer
• Tachometer
• 120 V inverter
• Wheel chocks
• Wiggins fuel fill
• Mesabi or Copper Core radiator
• Tire chains
• 10:00 x 20 pneumatic tires
• 10:00 x 20 flex tires
• Mud flaps

M40 UHL 6000 SD Scissor Lift PDF

1 file(s) 1.11 MB

Download
