MES 50 Heavy-Duty Marine Winch

Traditional Strength. Modern Hydraulic Control.

Engineered for the work that cannot stop.

Timberland Equipment was selected to partner with Marine Equipment Solutions to develop the recently launched MES 50. The collaboration also draws on the marine construction expertise of Rasmussen Equipment, an MES company established in 1936.

Together, Timberland Equipment, Marine Equipment Solutions, and Rasmussen Equipment bring more than 130 years of combined industry experience to this new generation of heavy-duty winching.

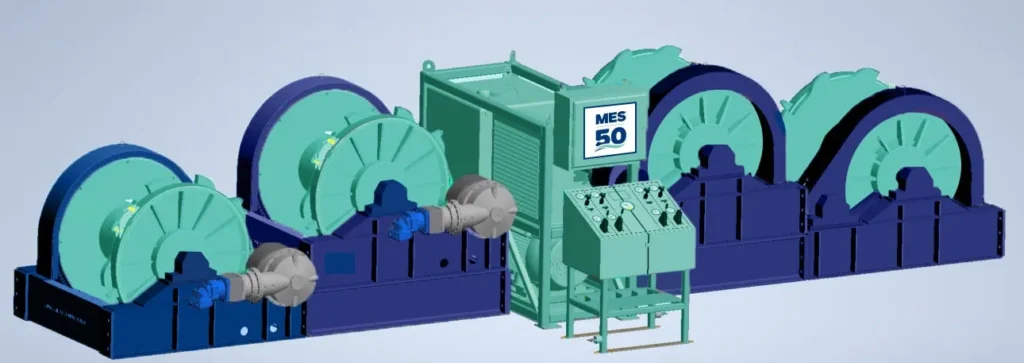

MES 50 Heavy Duty Marine Winch

The MES 50 combines the proven strength and durability of traditional friction winches with advanced hydraulic drive technology and precision controls. It delivers the power, efficiency, and control required for demanding marine and construction applications.

By integrating proven winching principles with modern technology, the MES 50 is designed to meet the evolving needs of the marine construction industry.

Key Specifications

  • 25,000–50,000 lb adjustable line pull
  • Up to 3,300 ft rope capacity
  • Diesel or electric hydraulic power units
  • IP56-rated electric motors
Industrial processing machinery with teal and blue rollers, control panel, and motor unit, likely a stone crushing or material handling plant.

A New Generation of Heavy-Duty Winching

Built for Demanding Pulls. Designed for Finer Control.

The MES 50 provides the rugged, field-proven foundation operators expect—enhanced with smooth hydraulic response, selectable high and low operating speeds, and intuitive joystick control.

These features provide confident handling, improved operating efficiency, and the precision required for challenging lifting and pulling applications.

The MES 50 is a modern winch platform grounded in decades of real-world marine construction and OEM engineering experience.

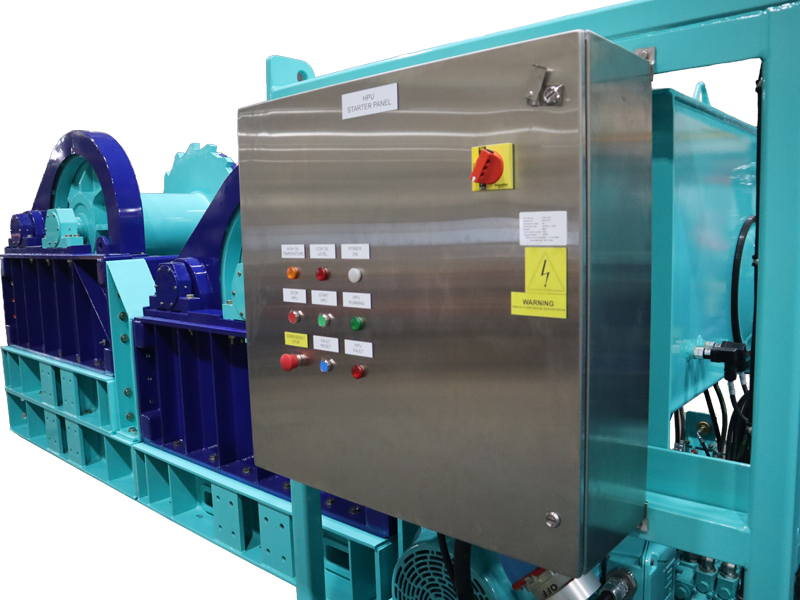

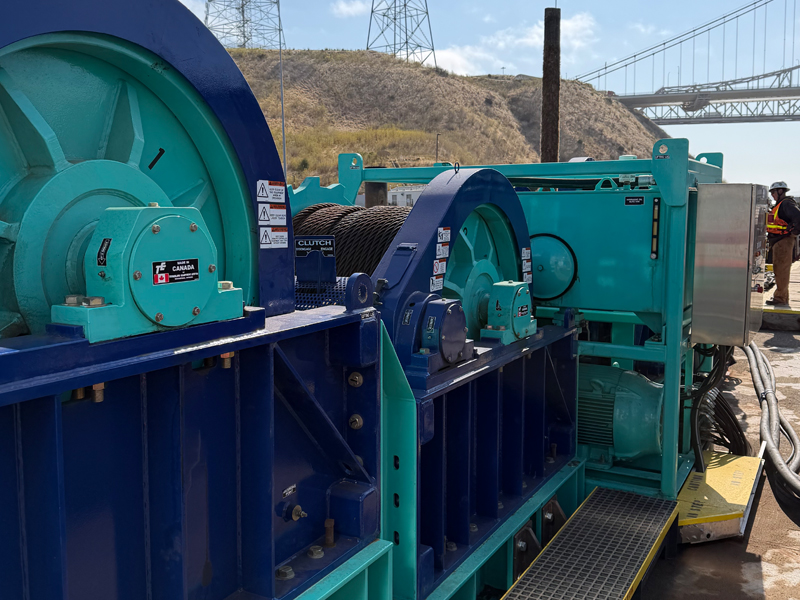

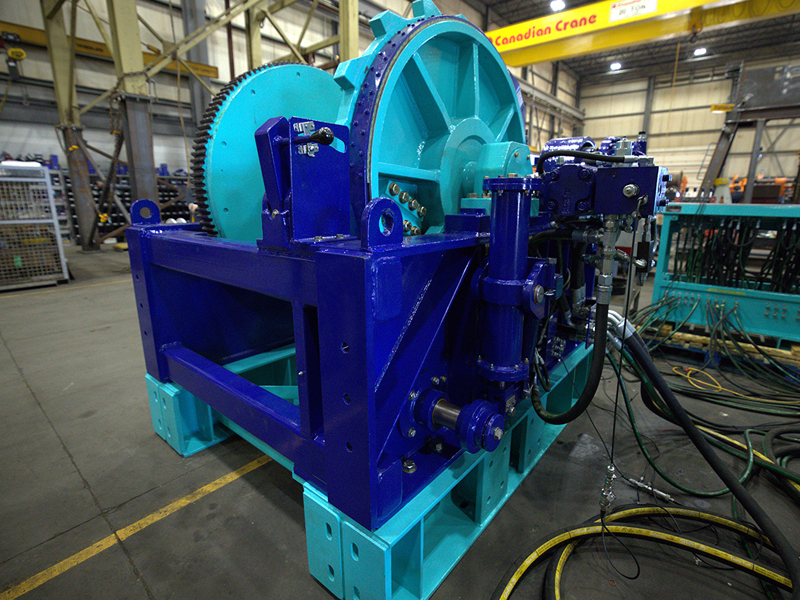

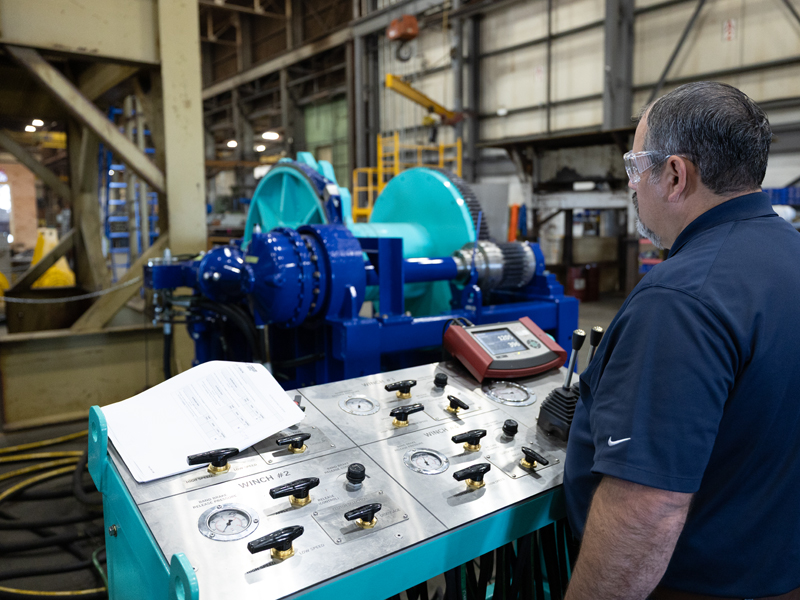

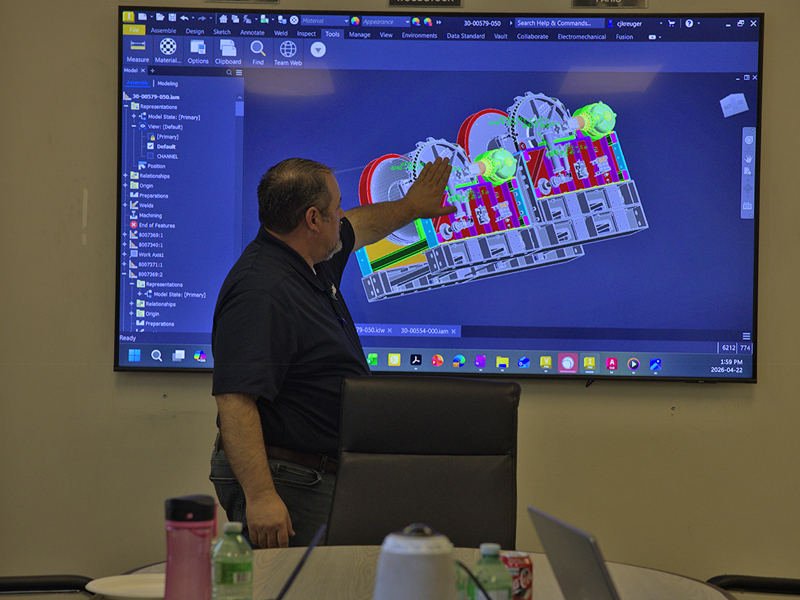

MES 50 Multi-Purpose Marine Winch MES 50 Multi-Purpose Marine Winch
MES 50 Multi-Purpose Marine Winch MES 50 Multi-Purpose Marine Winch
MES 50 Multi-Purpose Marine Winch MES 50 Multi-Purpose Marine Winch
MES 50 Multi-Purpose Marine Winch MES 50 Multi-Purpose Marine Winch
MES 50 Multi-Purpose Marine Winch MES 50 Multi-Purpose Marine Winch

• Enhanced performance: Designed to improve efficiency and power, the MES 50 excels in demanding tasks across various environments, allowing operators to select between high and low speeds for optimal performance.

• Hydraulic power system: The winches can be powered by either diesel or electric hydraulic power units (HPUs). By utilizing Tier 4 engines and electric HPUs the MES 50 contributes to a more environmentally friendly operation.

• Enhanced control and precision: Equipped with hydraulic controls, the MES 50 allows for precise operation, improving handling and finesse in lifting and pulling applications. The MES 50 provides smoother control and greater efficiency compared to traditional friction winches.

• Durability and longevity: Constructed with all-steel welded components, the MES 50 is built to withstand tough conditions, ensuring consistent performance in challenging marine environments.

• Integrated safety features: Equipped with multiple safety mechanisms, such as spring-applied brakes and mechanical locking dogs, the winch enhances operational safety for both operators and equipment.

• User-friendly operation: The intuitive joystick control system simplifies operation, significantly reducing the learning curve for new operators.

• Modular design: The winch offers modular options including subframes with integrated fleeting sheaves, allowing for flexible configurations tailored to specific projects.

• Dust and water protection: IP56-rated electric motors provide reliable protection against dust and water, making the MES 50 suitable for harsh environments.

• Standardized fleet and components: The MES 50 is designed with uniform parts across the fleet, simplifying maintenance and reducing downtime while providing operators with consistent training resources for efficient operation and service.

• Anchor line mooring and spud lifting/lowering
• Adjustable speed and pulling force from 25,000–50,000 lbs.
• Wire rope capacity up to 3,300 ft
• Wire rope diameter: 7/8 in – 1-1/4 in
• Wire rope: Ø7/8 in, Ø1 in, Ø1-1/8 in, or Ø1-1/4 in
• Fully hydraulic operation with joystick controls
• Band brake system
• Jaw clutch for freewheeling operation
• Mechanical locking dog
• Modular system design
• Diesel or electric HPU options available
• Modular design intended to be bolted together into a four-winch set with HPU
• Marine environment (mainly freshwater)
• Rated line pull (low speed): 50,000 lbs (1st layer) at 50 fpm
• Rated line pull (high speed): 25,000 lbs (1st layer) at 100 fpm
• 20 in drum root diameter, 32 in drum width
• Proportional band brake
• Driveline brake capacity: 150% of rated line pull
• Hydraulic actuated clutch for freewheel

Please fill out the form to download the PDF here:

Do you have a question? Please fill out the form here.

=

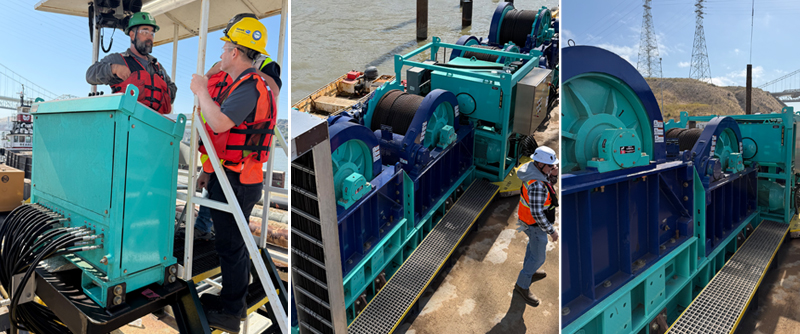

MES 50 Heavy Duty Marine Winch
