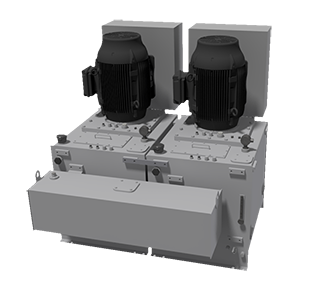

Configured to produce hydraulic power for hydraulically driven winches, chain jacks, hose reels, A-frames, etc.

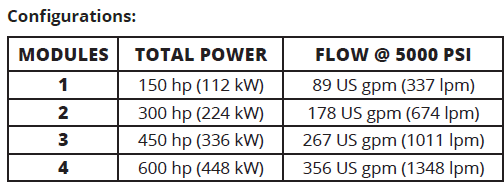

Available for use as a single module or combined with any number of additional modules to produce desired
power output for any project. These HPU’s are ideal for harsh marine, construction and mining environments.

Standard Features
• 150 hp (112 kW) per module
• 316 stainless steel hydraulic reservoir, 300 gallon (1135 litre) per module
• Open loop submerged pump, pressure and power compensated
• 5000 psi @ 89 gpm (345 bar @ 337 l/min) per module
• Integrated davit crane for easy removal of pump group
• Integrated lifting lugs for ease of transport and install
• Fluid level and temperature sensors

Optional Features
• Electric motor starter, NEMA 12 or NEMA 4X
• Hazardous zone rated
• Hydraulic oil cooler: air or water type
