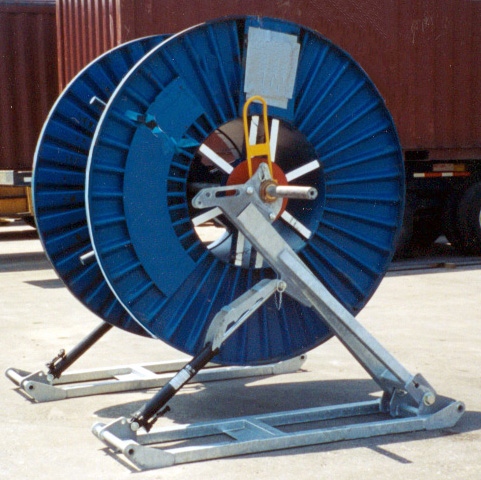

RS80-SL Reel Stand

RS80-SL Reel Stand

Standard Equipment

  • Self-loading by means of hydraulic jacks
  • Folds up for ease of transport
  • Heavy duty anchoring lugs
  • Four handles for ease of handling
  • Jack locking system on both sides
  • All options are installed by way of pin connections

Options

  • Hydraulic drive with spring-applied brake intermittent drive torque up to 129 daN-m (952 ft-lbs.)
  • Bronze disc brake for controlled payout of conductor 89 daN-m (653 ft-lbs.)
  • Levelwind for use as a take-up stand

Specifications

  • Maximum reel weight 8000 kg (17,600 lbs.)
  • Maximum reel diameter 2500 mm (98 inches)
  • Maximum reel width 1524 mm (60 inches)
  • Unit weight 270 kg (595 lbs.)
    (Approx. without options)
