Timberland Equipment have a wide variety of types and sizes of Traction Winches available. Sample models are shown below.

	7.5 Ton Traction Winch • 15,000 lbs (6,672 daN) linepull at low speed 60 fpm (18 m/min) • 7,500 lbs (3,340 daN) linepull at high speed 120 fpm (37 m/min) • Suitable for 9/16” (14.3 mm) steel pulling rope • 12” (300 mm) diameter bullwheels
	10 Ton Traction Winch • 20,000 lbs (8,900 daN) linepull • 800 fpm (244 m/min) speed • Suitable for 1” (25.4 mm) wire rope • 30” (760 mm) diameter bullwheels
	11.5 Ton Traction Winch • 22,930 lbs (10,200 daN) linepull • 193 fpm (59 m/min) speed • Suitable for 1.42” (36 mm) wire rope • Two 75 HP (56 kW) electric powered helical gear reducers • 35.4” (900 mm) diameter bullwheels
	12 Ton Traction Winch • 24,000 lbs (10,675 daN) linepull • 37 fpm (11 m/min) speed • Suitable for 5/8” (15.9 mm) wire rope • 10” (254 mm) diameter bullwheels • Grooves hardened to 45 rc • Module supplied with planetary reducer
	12.5 Ton Traction Winch • 25,000 lbs (11,120 daN) linepull • 235 fpm (72 m/min) speed • Suitable for 1 1/8” (28.5 mm) wire rope • Powered by a 250 HP (186 kW) hydraulic power unit • 35” (890 mm) diameter bullwheels
	16.5 Ton Traction Winch • 33,000 lbs (14,680 daN) linepull • 2.3 fpm (0.70 m/min) speed • Suitable for 0.68” (17 mm) wire rope • 34” (860 mm) diameter bullwheels
	19.5 Ton Traction Winch • 39,000 lbs (17,350 daN) linepull • 20.5 fpm (6.25 m/min) • Suitable for 1.125” (28.5 mm) wire rope • 16.8” (427mm) diameter bullwheels • 30 HP (23 kW) electric motor
	25 Ton Traction Winch • 50,000 lbs (22,240 daN) linepull • 570 fpm (174 m/min) speed • Suitable for 1.38” (35 mm) wire rope • 1000 HP (745 kW) hydraulic power unit • One hydraulic drive per bullwheel • 36.5” (930 mm) diameter bullwheels

Standard Features
• Dual bullwheels with machined grooves to suit rope diameter
• Constant linepull or tension throughout entire length of rope or cable

Optional Features
• Design for wire rope, synthetic rope or special cables
• Hydraulic or electric variable frequency drive system
• Replaceable bolt-on lining segments
• Reel Winder for spooling and tail tension or other tail tension type devices
• Design to suit rope connectors

7.5 to 25 Ton Traction Winches

1 file(s) 1,014.18 KB

Download

Have a question or need more information? We’re here to help — just fill out the form below!

	30 Ton Traction Winch • 60,000 lbs (26,900 daN) linepull at low speed 40 fpm (18 m/min) • 30,000 lbs (13,340 daN) linepull at high speed 90 fpm (27 m/min) • Suitable for 1 3/4” (44.4 mm) synthetic rope • 38” (970 mm) diameter bullwheels
	40 Ton Traction Winch • 20,000 lbs (8,900 daN) linepull • 800 fpm (244 m/min) speed • Suitable for 1” (25.4 mm) wire rope • 30” (760 mm) diameter bullwheels
	40 Ton Traction Winch • 80,000 lbs (35,600 daN) linepull at 40 fpm (12 m/min) • Maximum rope diameter 3 1/2” (89 mm) wire rope • 60” (1,524 mm) diameter bullwheels
	50 Ton Traction Winch • Two drums system • 105,000 lbs (46,706 daN) maximum linepull per rope at 130 fpm (40 m/min) maximum speed • Suitable for 2.25” (57 mm) wire rope • 40” (1000 mm) diameter bullwheels

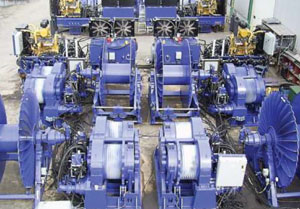

	75 Ton Traction Winch •150,000 lbs (66,700 daN) linepull at 100 fpm (30 m/min) low speed mode • 125,500 lbs (55,825 daN) linepull at 120 fpm (37 m/min) high speed mode • Suitable for 2 1/4” (57 mm) wire rope • 47” (890 mm) diameter bullwheels

Standard Features
• Dual bullwheels with machined grooves to suit rope diameter
• Constant linepull or tension throughout entire length of rope or cable

Optional Features
• Design for wire rope, synthetic rope or special cables
• Hydraulic or electric variable frequency drive system
• Reel Winder for spooling and tail tension or other tail tension type devices
• Design to suit rope connectors

30 to 75 Ton Traction Winches

1 file(s) 560.59 KB

Download

Have a question or need more information? We’re here to help — just fill out the form below!

	100 Ton Traction Winch • 224,000 lbs (100,000 daN) linepull • 19 fpm (16m/min) maximum speed • Maximum rope diameter 3 1/2” (89 mm) synthetic rope • 60” (1,524 mm) diameter bullwheels
	125 Ton Traction Winch • 250,000 lbs (111,200 daN) maximum linepull • 114 fpm (35 m/min) maximum speed • Suitable for 2.6” (66 mm) wire rope • 49” (1,240 mm) diameter bullwheels
	140 Ton Traction Winch • 287,500 lbs (127,000 daN) maximum linepull • 80 fpm (24 m/min) maximum speed • Suitable for 2 1/4” (57 mm) wire rope • 49.6” (1,260 mm) diameter bullwheels
	330 Ton Traction Winch • 672,000 lbs (299,00 daN) maximum linepull • 29 fpm (9 m/min) maximum speed • Suitable for 5.25” (57 mm) synthetic rope • 51.75” (1,315 mm) diameter bullwheels
