Timberland Equipment has played a specialized role in offshore spread mooring systems, delivering engineered winching, tensioning, and handling solutions used during the installation and positioning of large floating offshore assets such as FPSOs, drillships, semi-submersibles, and floating production platforms.
Core Capabilities
- High-capacity mooring winches for anchor line deployment and tension control
- Linear winch and pulling systems for chain, wire, and synthetic mooring lines
- Chain handling and anchor installation equipment
- Hydraulic Power Units (HPUs)
- Integrated hydraulic and control systems
- Custom-engineered offshore solutions
- Factory testing and commissioning support
- Lifecycle service and technical support
24 Point Mooring System for 4 Vessels

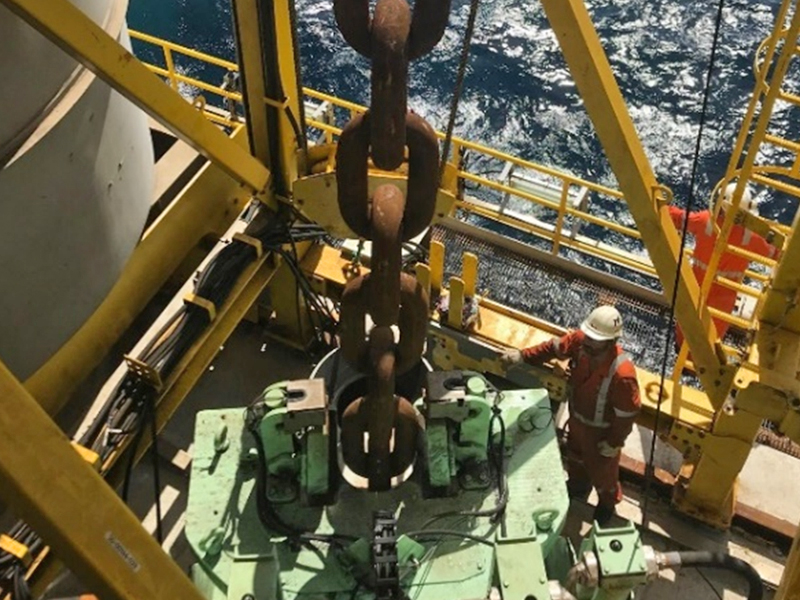

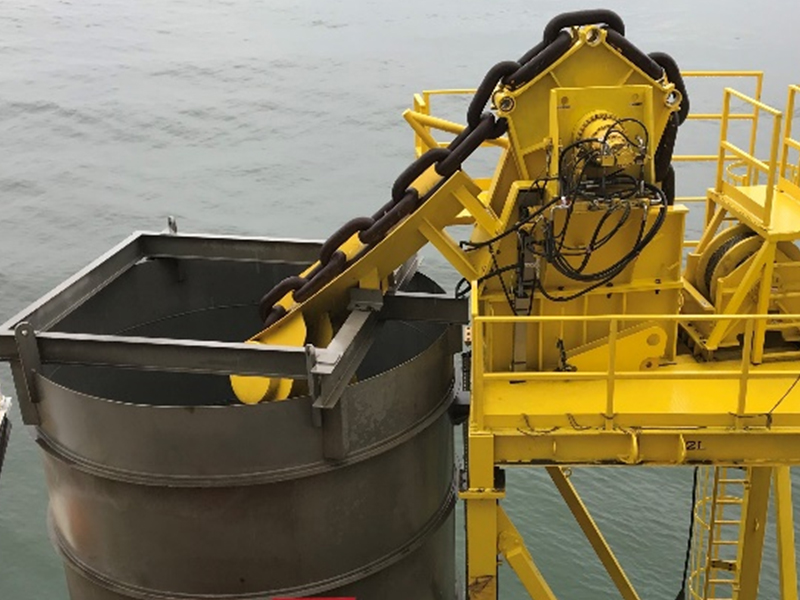

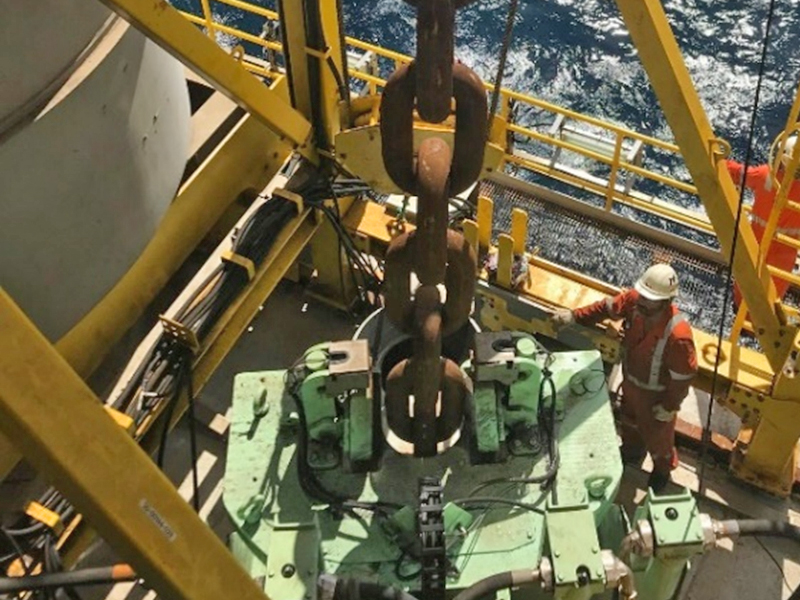

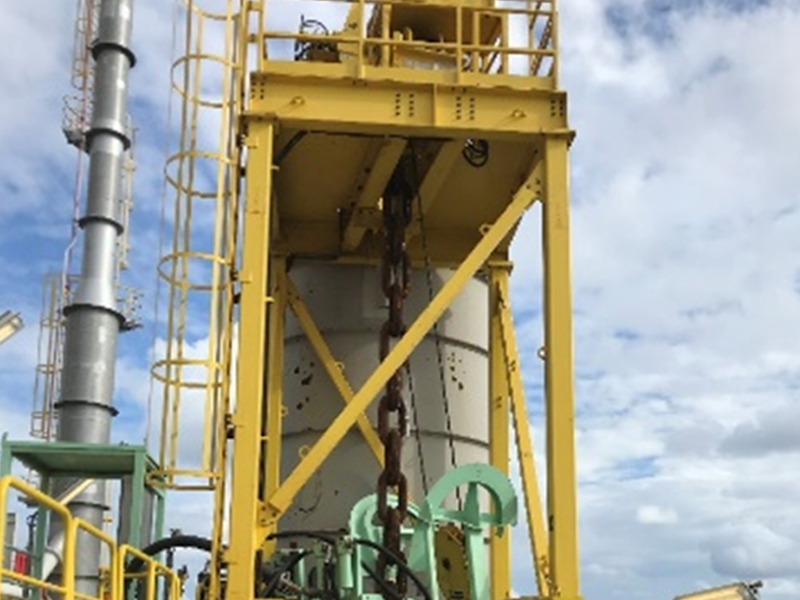

Timberland was contracted by EEP/Petrobras to design and manufacture 16 mooring pull-in systems for use in the Buzios field offshore of Brazil. Each system had a Timberland designed and manufactured skidding gantry which integrated a powered turndown sheave, tugger winch, block and tackle and a chain locker designed to hold several hundred feet of 120 mm studless chain.
This included:
- 120 mm Underwater Fairleads

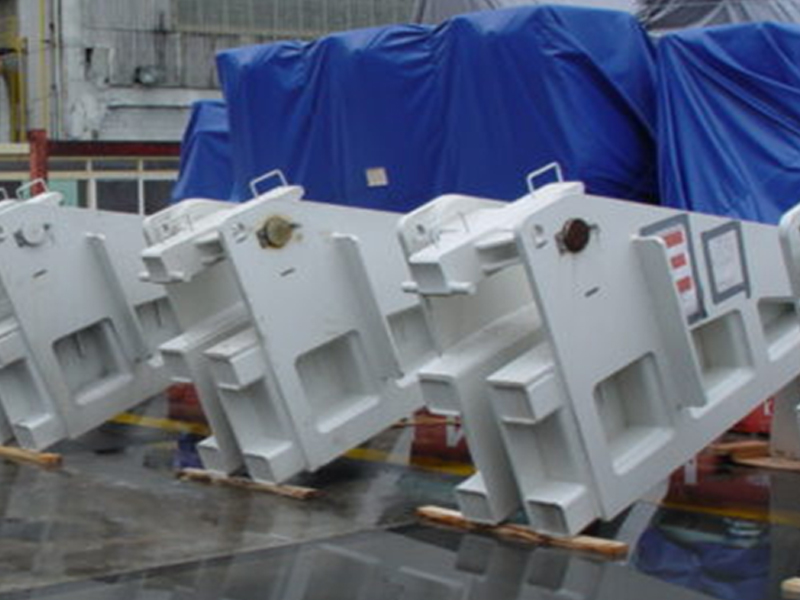

- Chain Stoppers
- 4 Moveable 600 Te Chain Jacks and Gantries
- HPU’s with Controls
P67 Equipment Modifications

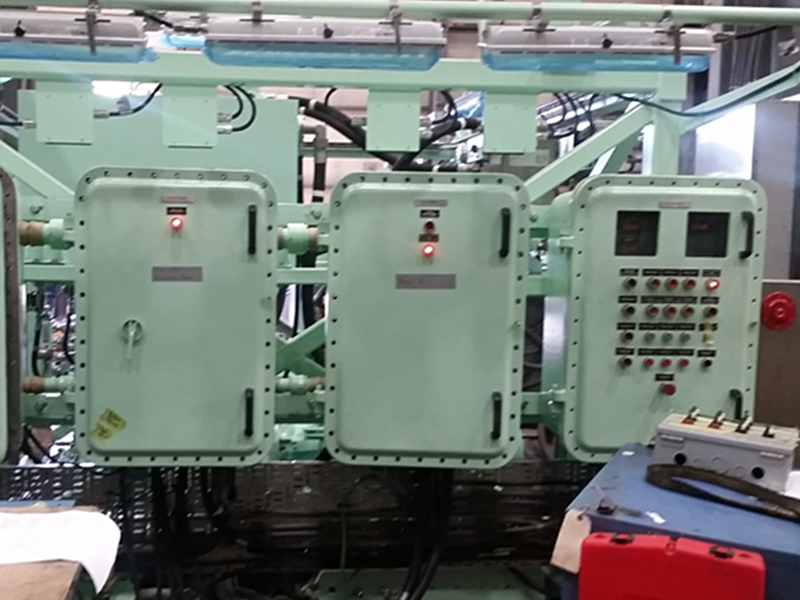

The scope included a new 550 Te winch featuring an improved levelwind and hydraulic control system, a new HPU utilizing refurbished explosion-proof panels, a relocated control cabin, and replacement of the main horizontal deflector sheave. The upgraded control system provides enhanced operational feedback for operators.
This included:
- 550 Te winch
- HPU
- Deck Sheave
- Controls Cab

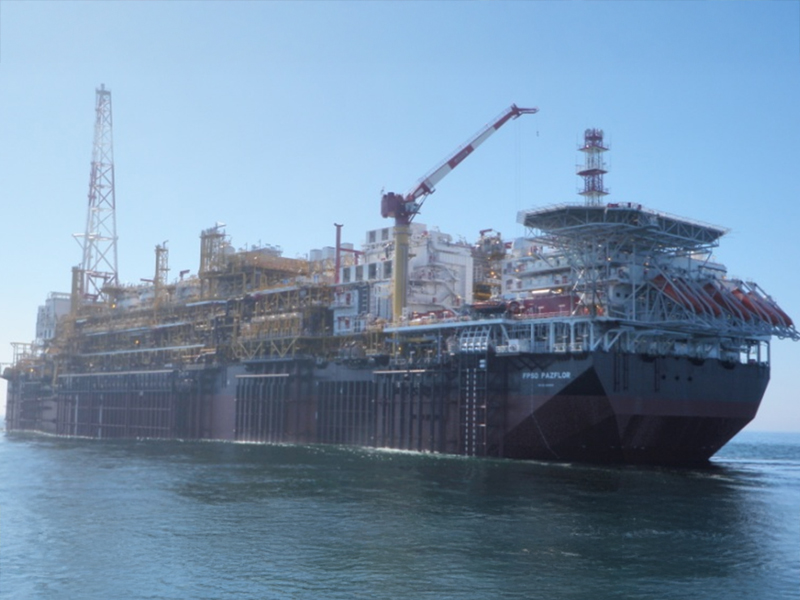

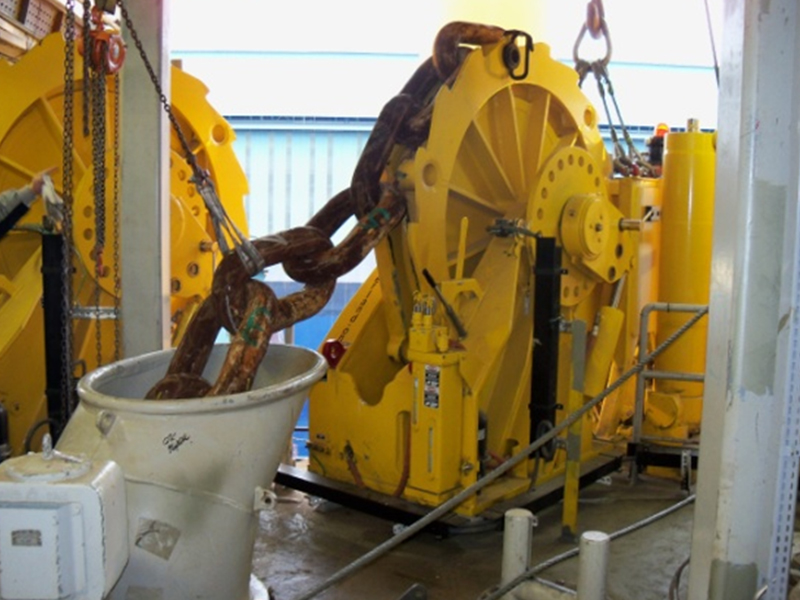

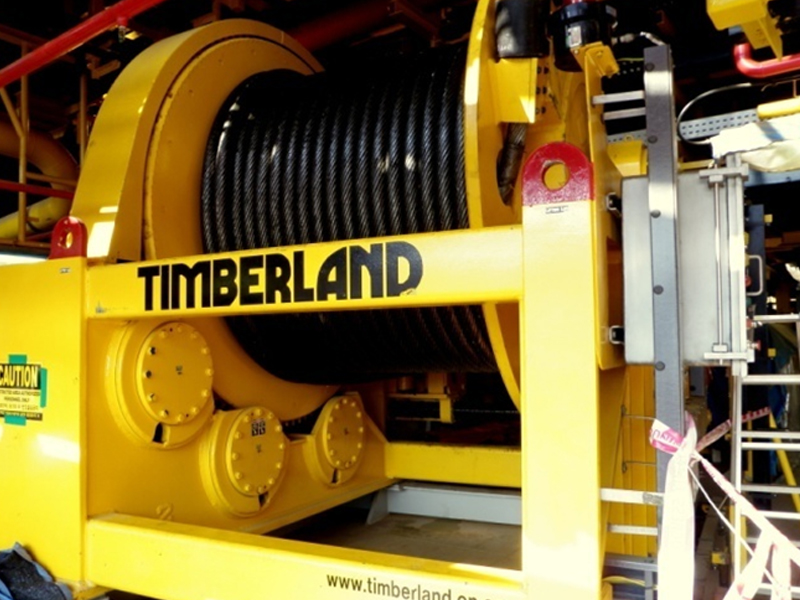

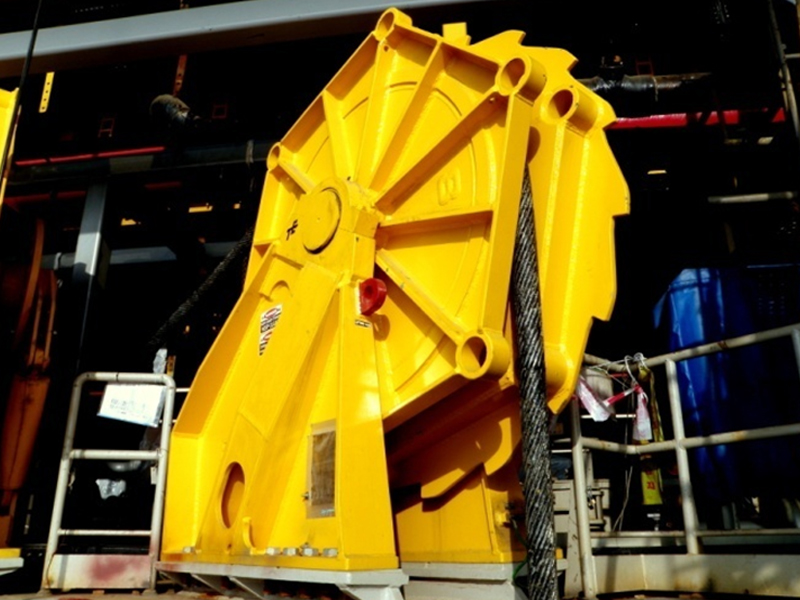

Plazflor FPSO
Timberland Equipment supplied critical mooring systems for Total’s Pazflor FPSO project, supporting offshore production operations located off the coast of Angola.
This included:

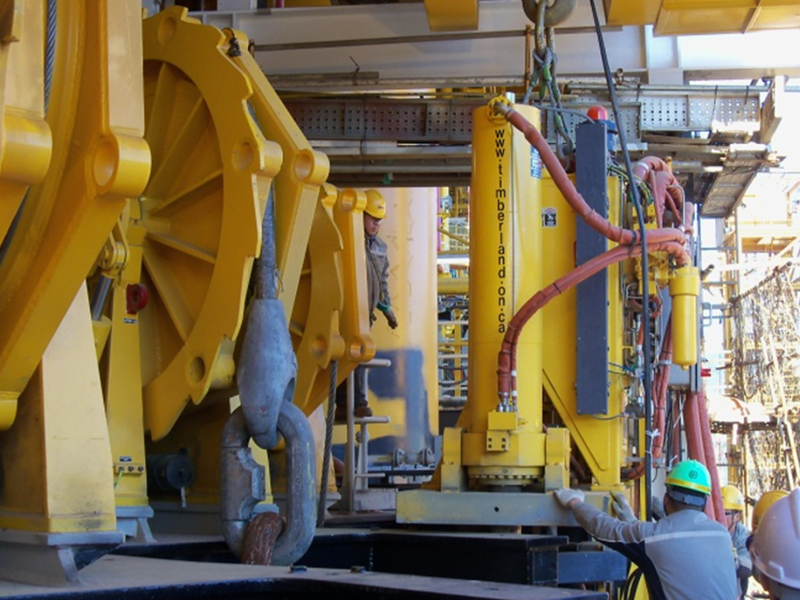

- 4 x 320 Te Moveable Chain Jacks
- 14 x Turn Down Sheaves
- 2 x 280 Te Winches
- 2 x HPU’s

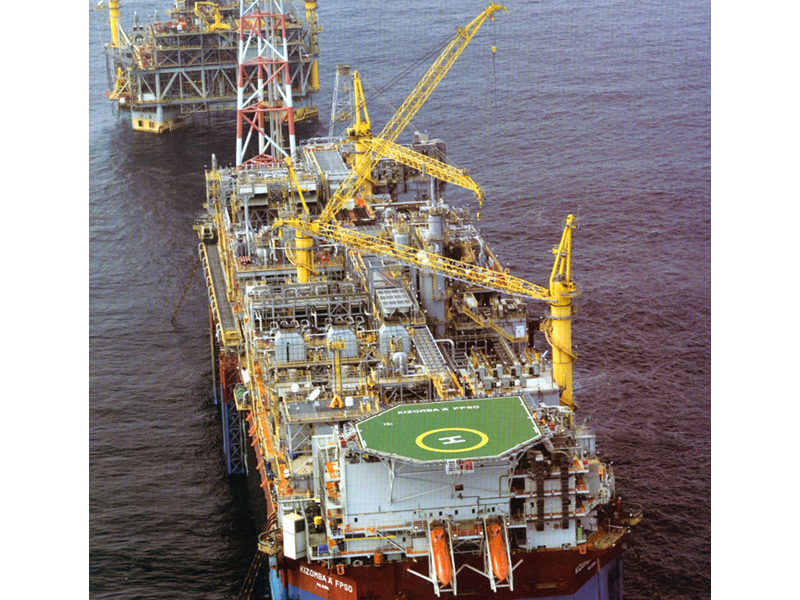

Kizomba A & B FPSOs

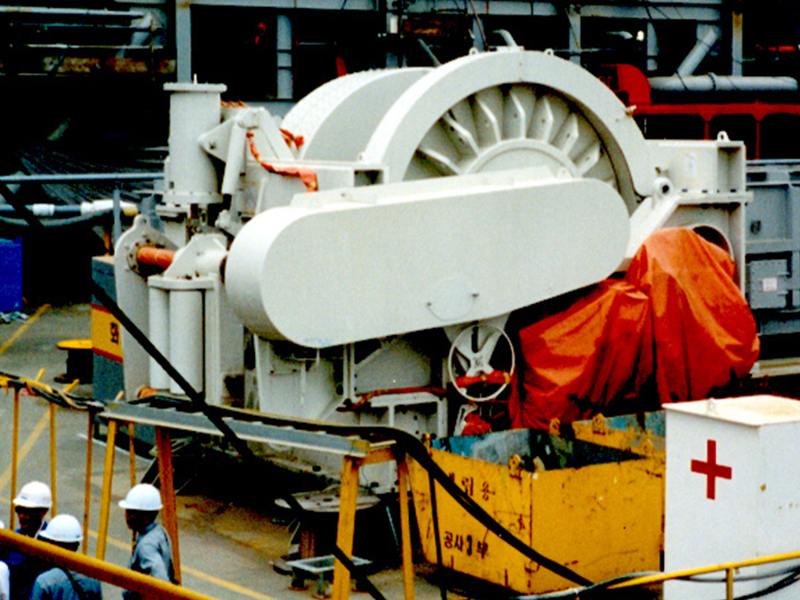

These were the largest drum winches supplied to date by Timberland Equipment with 550 Ton capacity with 110 mm diameter wire rope on the drums.
This included:
- 2 x 550 Ton winches
- 2 x 10 Ton winches
- Horizontal Deflector Sheaves

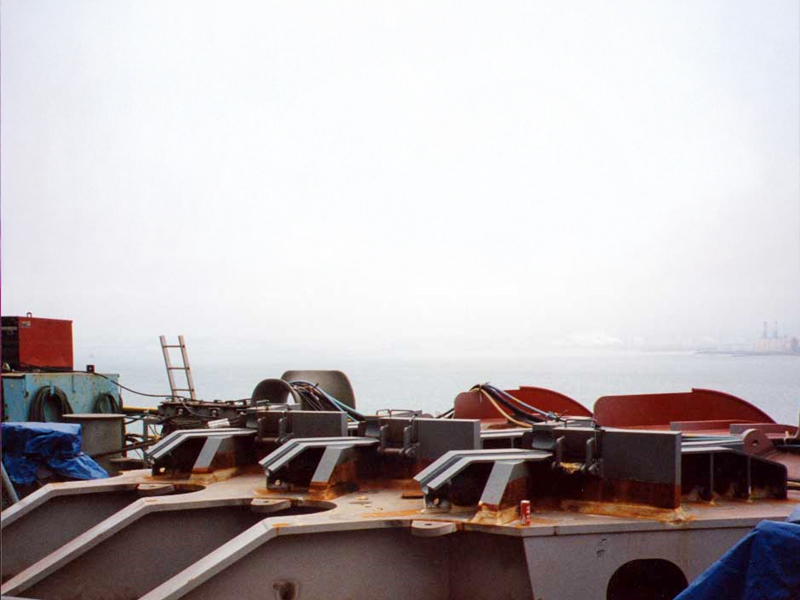

- 12 x Chain Stoppers
