Technical Specs
Engine
• Engine: Cummins B4.5
• Tier lll approved engine – 4 cylinder
• Horsepower: 143 HP
• Width: 8'6"
• Axle capacity: 27,000 lbs
• Height extended: 14’
• Liquid-cooled, turbo charged
• 220 L (48.4 gal) fuel tank
• AKG radiator
Transmission
• Dana Clark 32,000 standard shift transmission
• Four-speed forward and reverse
• 4-wheel drive
Exhaust System
• Catalytic converter w/silencer
Axles
• Dana 123 front and rear axle package
Tires
• 10:00 x 20 solid tires
Steering
• Orbital steering
• 37° Articulation each direction
Brake System
• Fully hydraulic wet disc service brakes on each axle
• Spring applied, hydraulic pressure-release wet disc secondary and park brake
Electrical System
• 24 V electrical w/ fire resistant wires
• Backup alarm (107 dB)
• Two (2) forward & Two (2) reverse LED drive lights
• Lockable master switch
• One (1) strobe light
Instrumentation
• Engine temperature & pressure warning lights
• Transmission temperature & pressure warning gauges
• Engine temperature & pressure warning gauges
• Hour meter
• Volt meter
• Parking brake applied warning light
General Equipment
• Front tow bumper
• Fire extinguisher bracket
• Wheel chock bracket
• Ansul 4 nozzle fire suppression package (LVS)

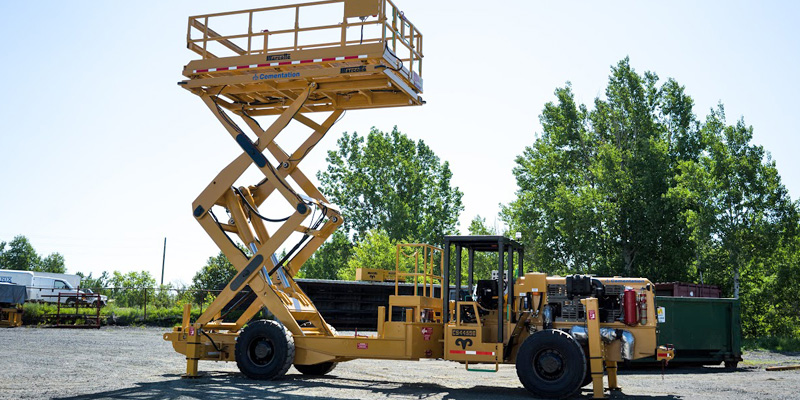

• Duel stage scissor lift with 2721 Kg (6000 lbs) lifting capacity
• Lifting height of approximately 4115 mm (162 in)
• Four (4) 990 mm (39in) jacks (two on the front and two on the rear)
• Side facing operator seat
