M40 5-in-1 Minejack® Multi-Unit

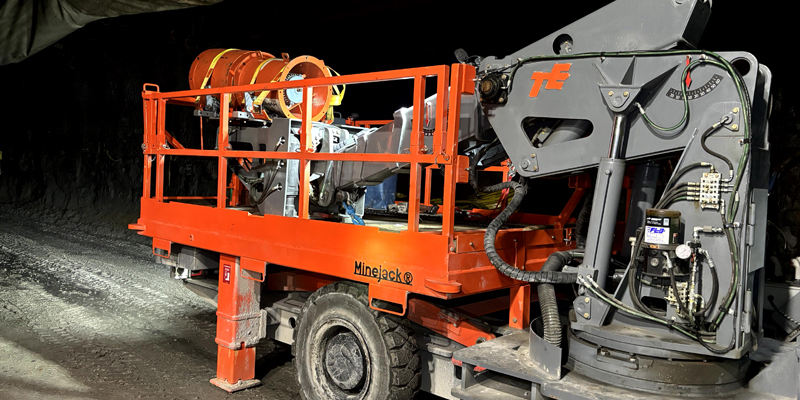

Meet the M40 Multi-Minejack®, a 5-in-1 Utility Vehicle

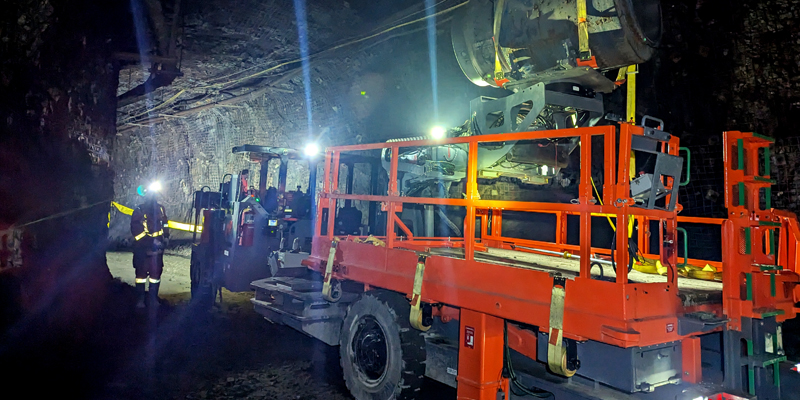

The Multi-Minejack® is an evolutionary carrier with the highest level of versatility and best utilization potential of any utility vehicle in the industry. With this design, a single all-in-one carrier can take the place of a variety of specialty vehicles in your fleet, including:

Fan handler
Pipe handler
Tire changer
Crane truck
Flat deck carrier
Full use scissor lift

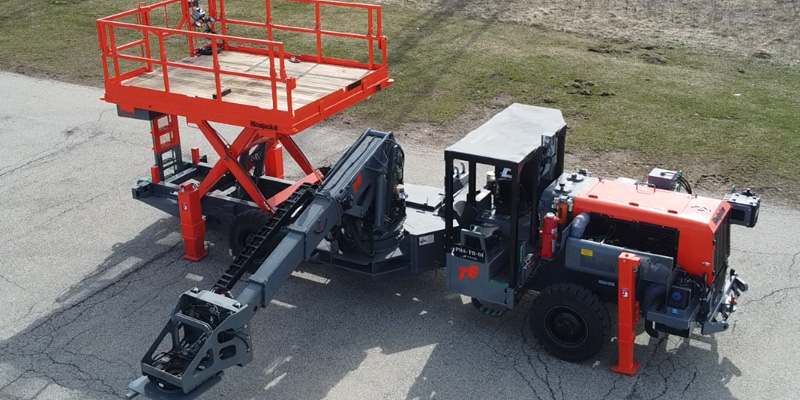

Boom

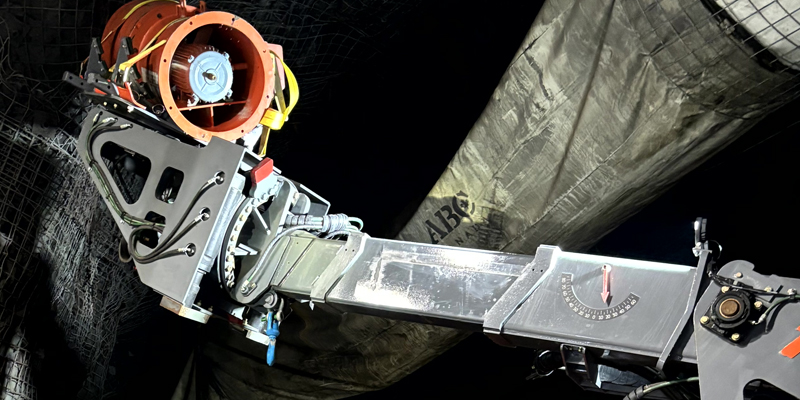

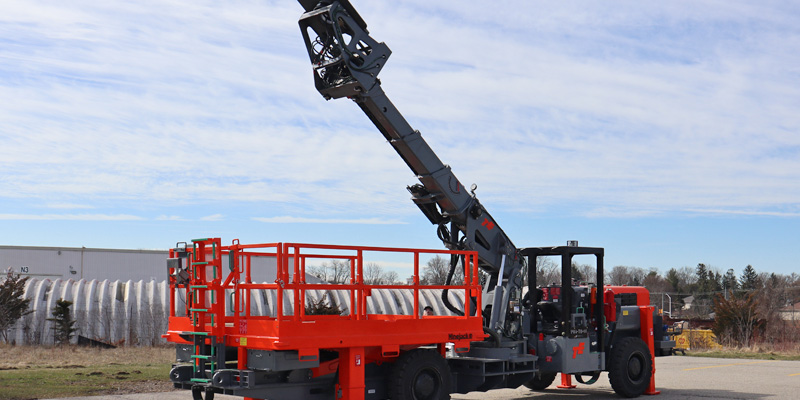

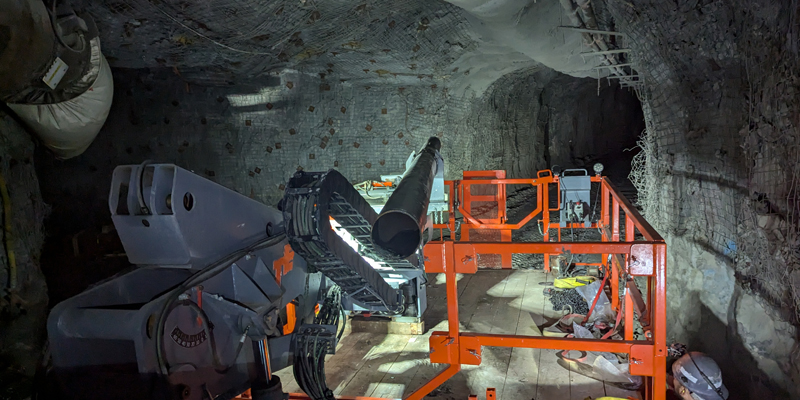

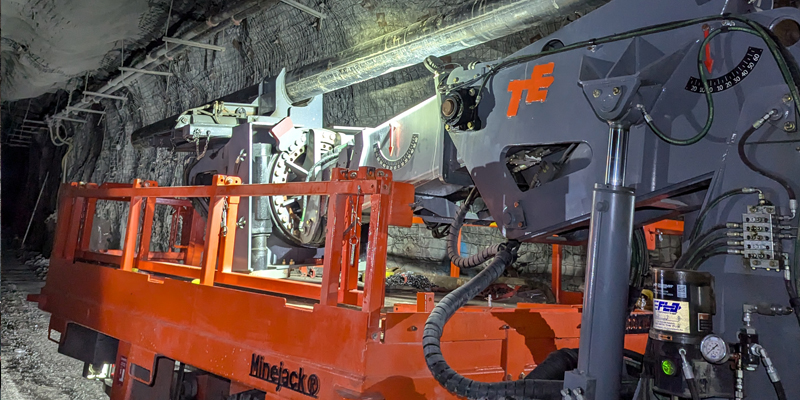

The boom is a 3-section telescopic design, which is designed and built by Timberland specifically for this unit

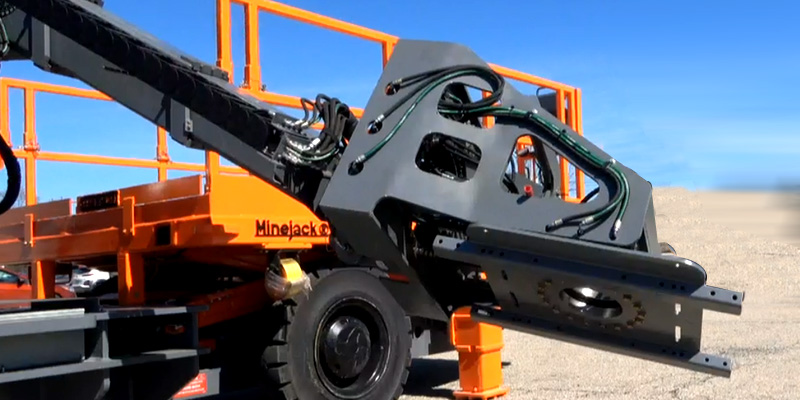

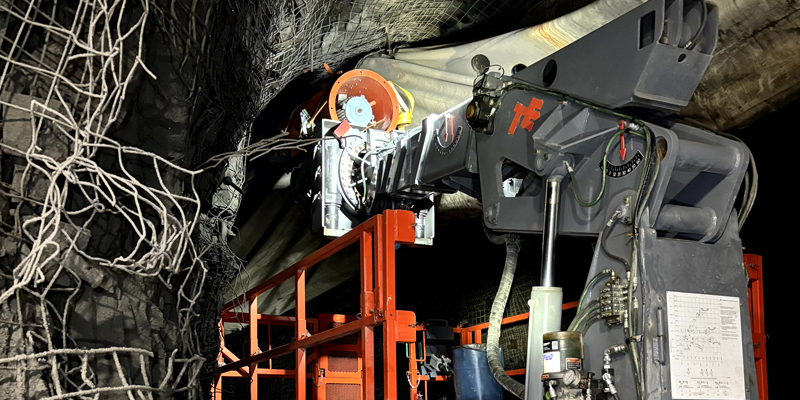

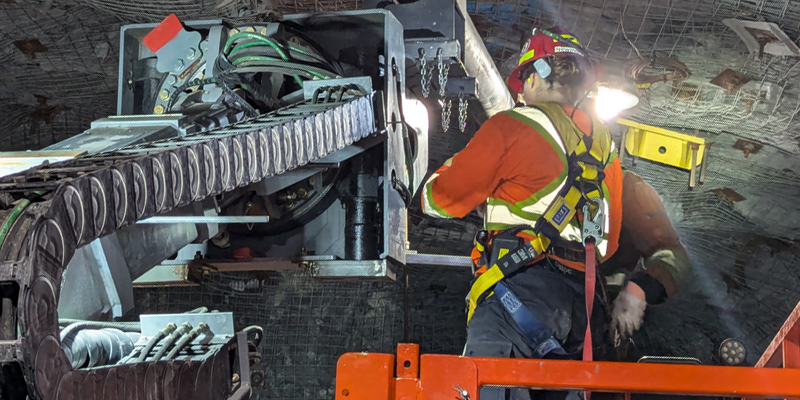

- The manipulator head on the boom can pivot and rotate in both axis. The rotation can go 310 degrees in the y-axis and 270 degrees in the x-axis

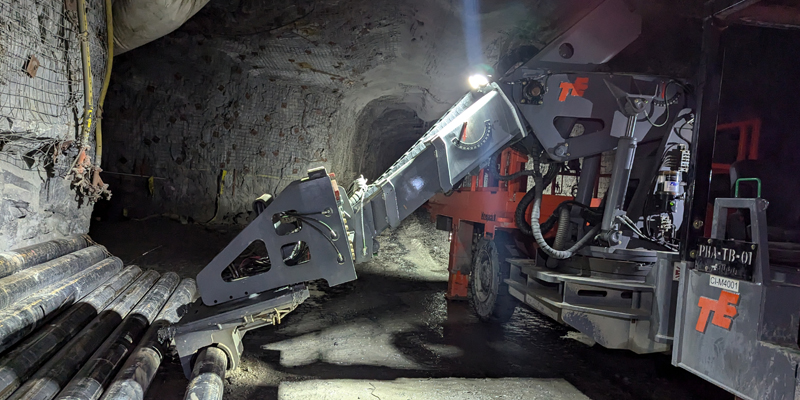

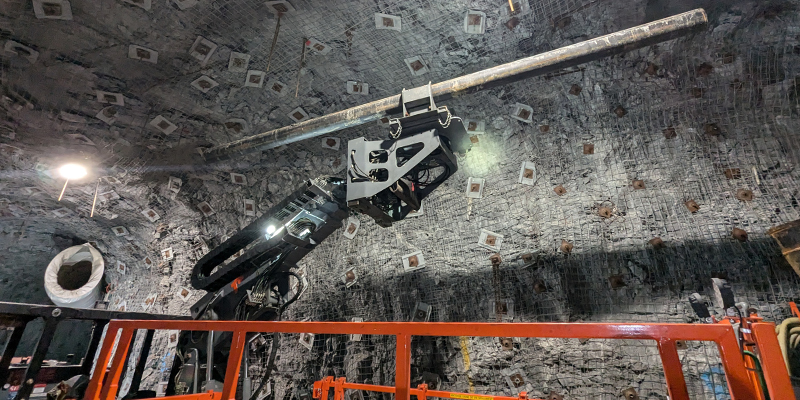

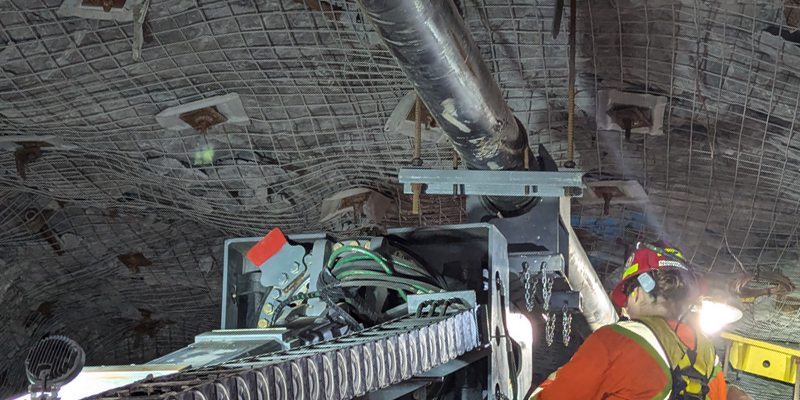

- The manipulator head has multiple grips and clamps for both fan and pipe handling

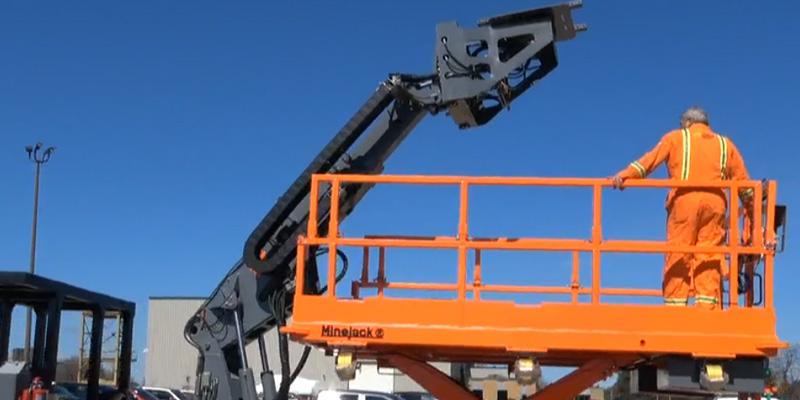

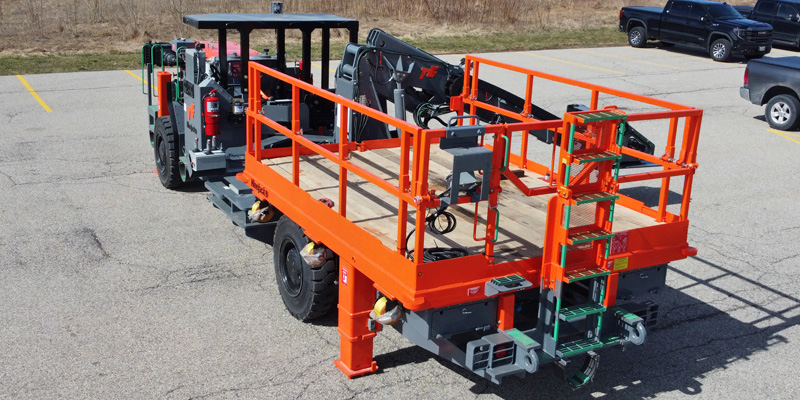

  - 9'x12' fixed deck with 6,000 lbs lifting capacity
  - When fully raised the deck reaches 9'-2"

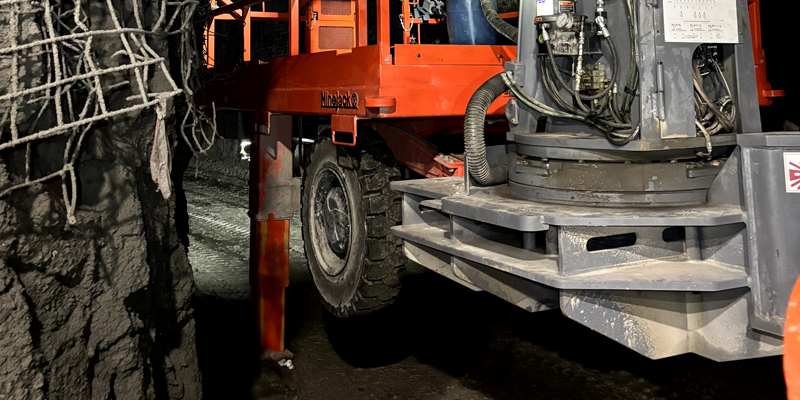

  - With the integrated jacks you can extend up to 12'2"

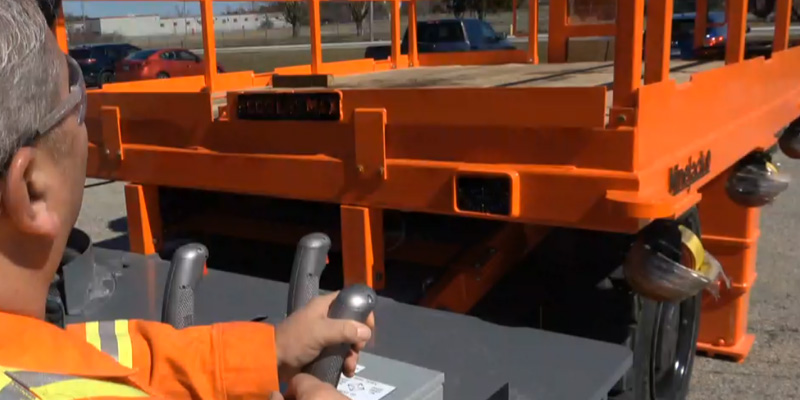

  - Both Boom and Scissor deck can be operated by our wireless remote

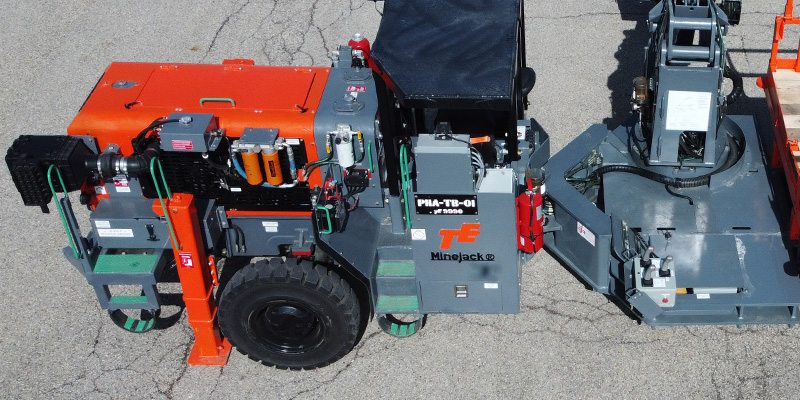

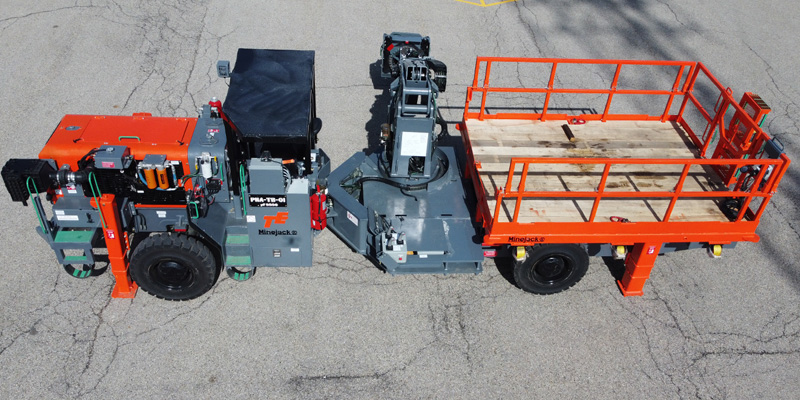

The front end is built on our robust Minejack^(R) M40 chassis and has an ultra-emissions efficient Cummins Euro stage 5 engine powering the system.

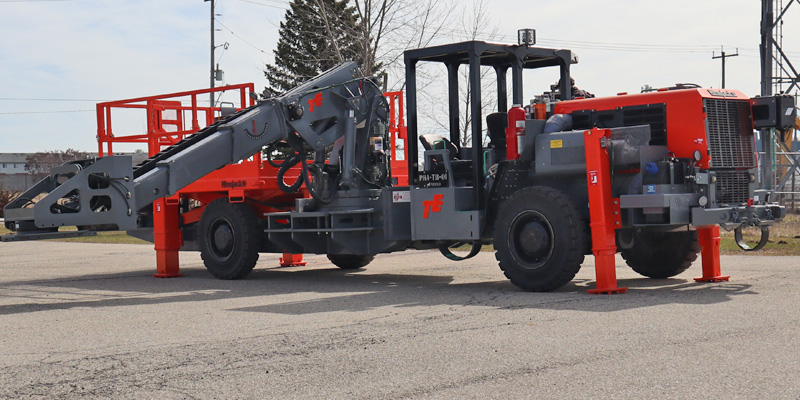

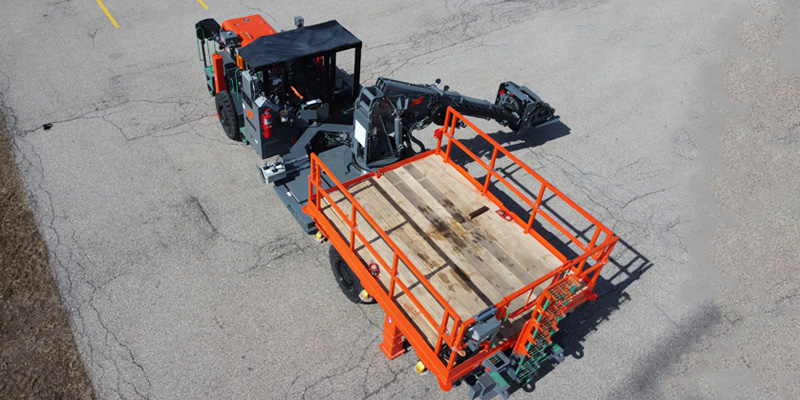

This task truck features a 4-wheel drive centre articulated carrier with a 3-section telescopic crane, 4,700 lbs. capacity when fully extended cable trays for neat, organized storage of the boom hosing and a fold-down removable handrail system with on-board storage.

Technical Specifications
Engine
• Tier 4, stage 5 engine
• Engine: Cummins B6.7
• Horsepower: 225 HP
• Width: 9’ 6”
• Axle capacity: 45,000 lbs
• Height Extended: 9' 2" with Jacks 11' 7"
• Liquid-cooled, turbo charged
• 220 L (48.4 gal) fuel tank
• AKG radiator

Transmission
• Dana Clark 32,000 standard shift transmission
• Three speeds forward and reverse
• 4-wheel drive

Exhaust System
• Catalytic converter w/silencer

Axles
• Dana 114 front and rear axle package

Tires
• 12:00 x 20 solid tires

Steering
• Orbital steering
• 37° Articulation each direction

Brake System
• Fully hydraulic wet disc service brakes on each axle
• Spring applied, hydraulic pressure-release wet disc secondary and park brake

Electrical System
• 24 V electrical w/ fire resistant wires
• Backup alarm (107 dB)
• Two (2) forward & Two (2) reverse LED drive lights
• Lockable master switch
• One (1) strobe light

Instrumentation
• Engine temperature & pressure warning lights
• Transmission temperature & pressure warning gauges
• Engine temperature & pressure warning gauges
• Hour meter
• Volt meter
• Parking brake applied warning light

Hydraulic System
• 99 L (21.7 gal) hydraulic reservoir
• JIC hydraulic fittings & Aeroquip hoses

General Equipment
• Front tow bumper
• Fire extinguisher bracket
• Wheel chock bracket
• Side facing operator seat
• 4 Nozzle fire suppression

Additional Options
• ROPS / FOPS canopy
• ROPS / FOPS enclosed cab including air-conditioning, heat w/ insulation and cab mounted lighting
• Air ride seat
• Cold weather package
• Air / water header assembly
• Fire extinguisher
• Rear tow bumper
• Front & rear tow hooks
• Front & Rear lifting lugs
• Stick steering
• Front facing operator seat
• Graco or Lincoln automatic lubrication system
• Jump start receptacle
• 6 nozzle fire suppression
• Checkfire
• Firwin blanket
• HTI wrap
• Rear brake lights
• Speedometer
• Tachometer
• 120 V inverter
• Wheel chocks
• Wiggins fuel fill
• Mesabi or Copper Core radiator
• Mud flaps
