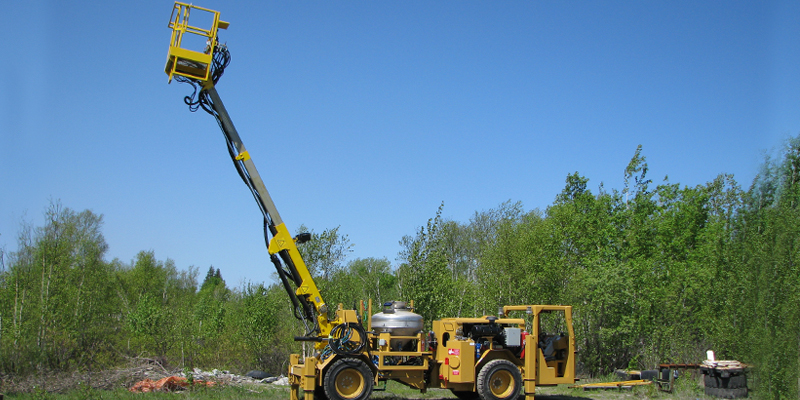

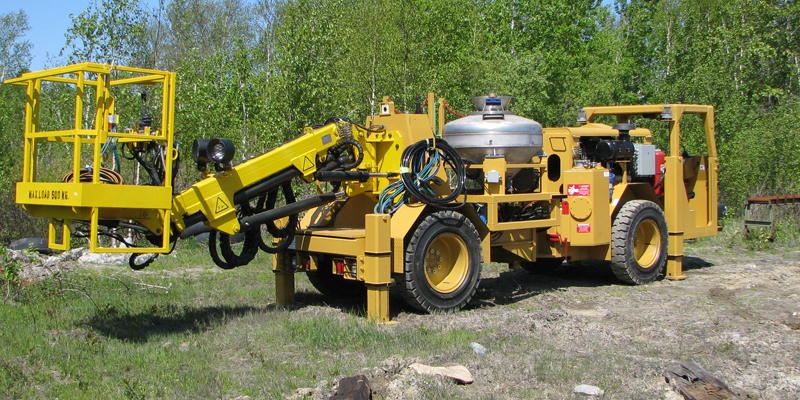

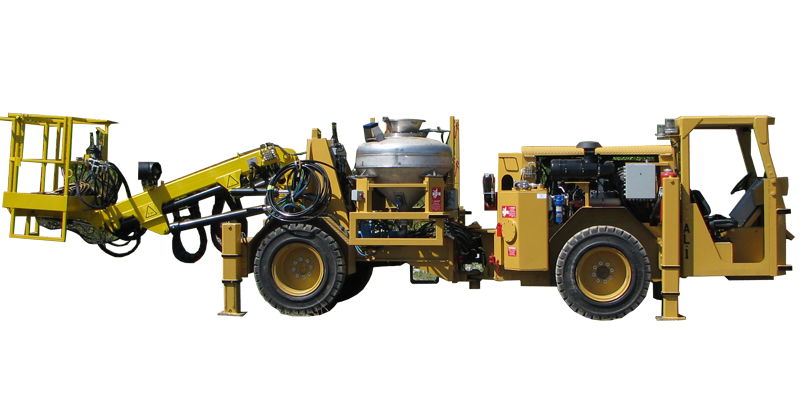

M30 Anfo Loader M30 Anfo Loader
M30 Anfo Loader M30 Anfo Loader
M30 Anfo Loader M30 Anfo Loader

Mobile Minejack® M30 ANFO Loader for Heavy Mining Applications

Explosive units are commonly used in underground blasting operations because their precise loading enables mine crews to break rock in the desired manner. No other unit can measure up to the speed, reliability and safety of Timberland Equipment explosive carriers for delivery and pumping of high explosive emulsion or ANFO into blast holes.

With their simple, user-friendly functions, excellent range of coverage and in-depth safety features, one to two operators can easily handle all your ANFO and emulsion-loading tasks. With the capacity to have two tanks on the unit, our ANFO units allow for extended loading sorties.

Technical Specifications

Engine
• Tier lll approved engine – 4 cylinder
• Cummins QSB4.5, 140 HP (104 kW) @2400 rpm
• Liquid-cooled, turbo charged
• 113.5 L (25 gal) fuel tank
• AKG radiator

Transmission
• Dana Clark 20,000 standard shift transmission
• Three-speed forward and reverse
• 4-wheel drive

Exhaust System
• Catalytic converter w/silencer

 Axles
• Dana 113N front and rear axle package

Tires
• 9:00 x 20 solid tires

Steering
• Orbital steering
• 40° articulation each direction

Brake System
• Fully hydraulic wet disc service brakes on each axle
• Spring applied, hydraulic pressure release wet disc
secondary and park brake

Hydraulic System
• 10-micron filter
• 100 L (22 gal) hydraulic reservoir
• JIC hydraulic fittings & Aeroquip hoses

Electrical System
• 24 V electrical w/ fire resistant wires
• Backup alarm (107 dB)
• Two (2) forward & Two (2) reverse LED drive lights
• Lockable master switch
• One (1) strobe light

Instrumentation
• Engine temperature & pressure warning lights
• Transmission temperature & pressure warning gauges
• Engine temperature & pressure warning gauges
• Hour meter
• Volt meter
• Parking brake applied warning light

General Equipment
• Front tow bumper
• Fire extinguisher bracket
• Wheel chock bracket
• Ansul 4 nozzle fire suppression package (LVS)
• Forward facing operator seat
• 227 kg (500 lbs) single anfo pot
• Timberland MB150 manbasket
• Two (2) 406 mm (16 in) rear jacks

Additional Options
• ROPS / FOPS canopy
• ROPS / FOPS enclosed cab including air-conditioning, heat w/ insulation and cab mounted lighting
• Air ride seat
• Cold weather package
• Air / water header assembly
• Fire extinguisher
• Jump start receptacle
• MB210 man basket- extended boom coverage
• Emergency steering
• Remote engine start/stop
• Customizable anfo tank size (up to 5000lbs)
• Dual anfo tanks
• Hydraulic power pack
• Remote control operation with creep speed control
• Boom cradle
• 762 mm (30 in) front or rear jacks
• 991 mm (39 in) front or rear jacks
• Checkfire
• Rear tow bumper
• Front & rear tow hooks
• Tier 3 engine with DPF filter
• Mercedes MB904 Tier lll engine
• Cummins tier IV QSB4.5 engine
• Front & Rear lifting lugs
• Stick steering
• Mud flap
• Hose reel
• 85 CFM compressor
• Front facing operator seat
• Graco or Lincoln automatic lubrication system
• Firwin blanket
• HTI wrap
• Rear brake lights
• Speedometer
• Tachometer
• 120 V inverter
• Wheel chocks
• Wiggins fuel fill
• Mesabi or Copper Core radiator
• Tire chains
• 10:00 x 20 solid tires
• 9:00 x 20 pneumatic tires
• 9:00 x 20 flex tires

Carrier Configuration
• One (1) operator and one (1) passenger seat
• Single person manbasket with 230 kg (500 lbs) capacity
