Mobile Minejack^® Crane & Flatbed Utility Vehicles

Timberland Equipment Crane Trucks meet the harsh demands of moving materials such as pipe, shotcrete bags, rock bolts or lumber underground. Our carrying capacities range from 22,000 lbs. up to as high as 32,000 lbs. on the M40 carrier. Our narrow vein configuration has a carrying capacity of 10,000 lbs.

M30 Crane Truck	M40 Crane Truck	M60 Flatbed Truck

The PALFINGER and HIAB cranes used on our carriers are proven as reliable and efficient, which are supported worldwide.

The front and rear frame weldments of the carrier are covered by our 8-year warranty against manufacturing or design defects.

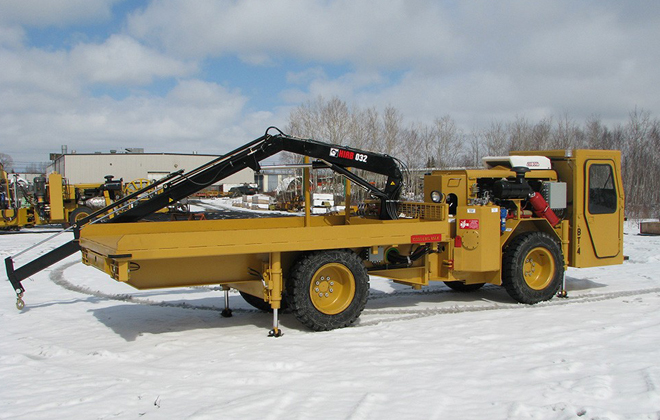

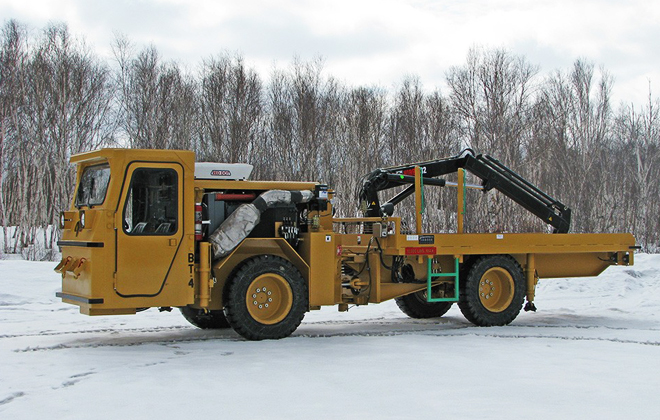

M30 Crane Truck

Technical Specifications
Engine
• Tier lll approved engine - 4 cylinder
• Cummins QSB4.5, 140 HP (104 kW) @2400 rpm
• Liquid-cooled, turbo charged
• 113.5 L (25 gal) fuel tank
• AKG radiator
Transmission
• Dana Clark 20,000 standard shift transmission
• Three-speed forward and reverse
• 4-wheel drive

Exhaust System
• Catalytic converter w/silencer

Axles
• Dana 113N front and rear axle package

Tires
• 9:00 x 20 solid tires

Steering
• Orbital steering
• 40° articulation each direction

Brake System
• Fully hydraulic wet disc service brakes on each axle
• Spring applied, hydraulic pressure-release wet disc secondary and park brake

Electrical System
• 24 V electrical w/ fire resistant wires
• Backup alarm (107 dB)
• Two (2) forward & Two (2) reverse LED drive lights
• Lockable master switch
• One (1) strobe light

Instrumentation
• Engine temperature & pressure warning lights
• Transmission temperature & pressure warning gauges
• Engine temperature & pressure warning gauges
• Hour meter
• Volt meter
• Parking brake applied warning light

Hydraulic System
• 10-micron filter
• 100 L (22 gal) hydraulic reservoir
• JIC hydraulic fittings & Aeroquip hoses

General Equipment
• Front tow bumper
• Fire extinguisher bracket
• Wheel chock bracket
• Ansul 4 nozzle fire suppression package (LVS)
• Forward facing operator and passenger seat
• HIAB 033 T Truck Crane or equivalent
• 1842 mm (72 in) x 3962 mm (156 in) deck without wheel wells
• 38 mm (1.5 in) kickplate
• Two (2) 406 mm (16 in) rear jacks
• Tie down straps

Carrier
ROPS / FOPS canopy
• ROPS / FOPS enclosed cab including air-conditioning, heat w/ insulation and cab mounted lighting
• Air ride seat
• Cold weather package
• Air / water header assembly
• Fire extinguisher
• 152 mm (6 in) kickplate
• 203 mm (8 in) kickplate
• Lower profile deck
• Palfinger (PK 5 SLD)
• HIAB (XS 044 D-3)
• 6 nozzle fire suppression
• Rear tow bumper
• Front & rear tow hooks
• Tier 3 with DPF filter
• Mercedes MB904 Tier lll engine
• Cummins Tier IV QSB4.5 engine
• Front & Rear lifting lugs
• Stick steering
• Side facing operator seat
• Graco or Lincoln automatic lubrication system
• Jump start receptacle
• Firwin blanket
• HTI wrap
• Rear brake lights
• Speedometer
• Tachometer
• 120 V inverter
• Wheel chocks
• Wiggins fuel fill
• Mesabi or Copper Core radiator
• Tire chains
• 10:00 x 20 solid tires
• 9:00 x 20 pneumatic tires
• 9:00 x 20 flex tires
• Mud flaps

M30 Crane Truck PDF

1 file(s) 12.00 KB

Download

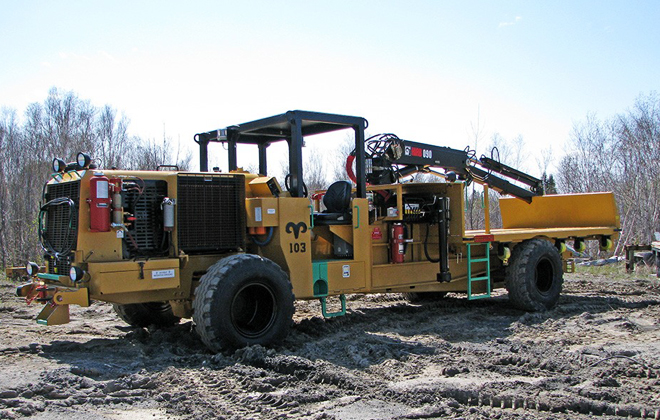

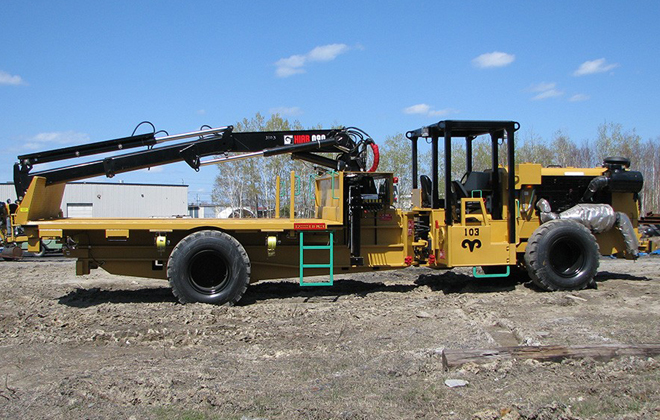

M40 Crane Truck

Technical Specifications

Engine
• Tier lll approved engine: 6-cylinder
• Cummins QSB6.7, 225 HP (168 kW) @2200 rpm
• Liquid-cooled, turbo charged
• 220 L (48.4 gal) fuel tank
• AKG radiator

Transmission
• Dana Clark 32,000 standard shift transmission
• Four speed forward and reverse
• 4-wheel drive

Exhaust System
• Catalytic converter w/silencer

Axles
• Dana 114 front and rear axle package

Tires
• 10:00 x 20 solid tires

Steering
• Orbital steering
• 37° Articulation each direction

Brake System
• Fully hydraulic wet disc service brakes on each axle
• Spring applied, hydraulic pressure-release wet disc secondary and park brake

Electrical System
• 24 V electrical w/ fire resistant wires
• Backup alarm (107 dB)
• Two (2) forward & Two (2) reverse LED drive lights
• Lockable master switch
• One (1) strobe light

Hydraulic System
• 10-micron filter
• 100 L (22 gal) hydraulic reservoir
• JIC hydraulic fittings & Aeroquip hoses

General Equipment
• Front tow bumper
• Fire extinguisher bracket
• Wheel chock bracket
• Ansul 4 nozzle fire suppression package (LVS)
• Side facing operator seat
• POV Finger PK 11001
• Low profile deck

Additional Options
• ROPS / FOPS canopy
• ROPS / FOPS enclosed cab including air-conditioning, heat w/ insulation and cab mounted lighting
• Air ride seat
• Cold weather package
• Air / water header assembly
• 152 mm (6 in) kickplate/side-board
• 203mm (8 in) kickplate/sid- board
• High profile deck (elevated above wheels wells)|
• HIAB S CLX 100D-2
• Fire extinguisher
• Jump start receptacle
• 6 nozzle fire suppression
• Rear tow bumper
• Front & rear tow hooks
• Tier III with DPF filter
• Mercedes MB906 Tier lll engine
• Cummins tier IV QSB6.7 engine
• Front & Rear lifting lugs
• Stick steering
• Front facing operator seat
• Graco or Lincoln automatic lubrication system
• Firwin blanket
• Front facing operator seat
• HTI wrap
• Rear brake lights
• Speedometer
• Tachometer
• 120 V inverter
• Wheel chocks
• Wiggins fuel fill
• Mesabi or Copper Core radiator
• Tire chains
• 9:00 x 20 pneumatic tires
• 9:00 x 20 flex tires
• Mud flaps

M40 Crane Truck PDF

1 file(s) 373.90 KB

Download

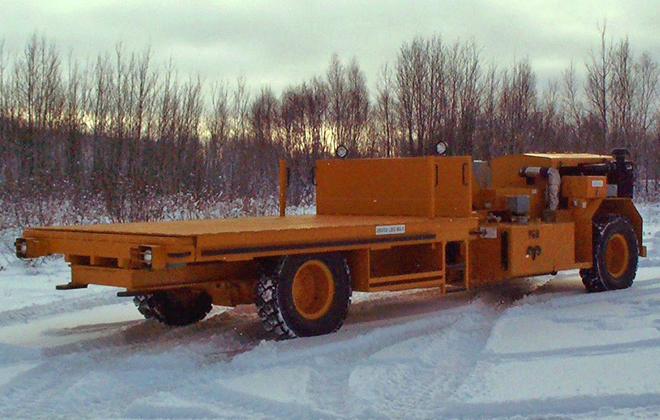

M60 RAMFlatbed Truck

STANDARD CARRIER FEATURES
• 24 V Electrical w/ Bostrig Fire Resistant Wires
• Engine Temperature & Pressure Warning Lights
• Transmission / Engine Temperature & Pressure Warning Gauges
• Backup Alarm
• Two (2) Forward & Two (2) Reverse Drive Lights
• One (1) Strobe Light
• Lockable Master Switch
• Hour Meter
• Volt Meter
• JIC Hydraulic Fittings & Aeroquip Hoses
• Orbital Steering
• Side Facing Compartment
• Mechanical Seats w/ Seat Belts
• ECS Catalytic Converter w/ Silencer
• Donaldson Dry Type Intake w/ Safety Element
• Front Tow Bumper
• Fire Extinguisher Bracket
• Wheel Chock Brackets

FLATBED TRUCK FEATURES
• 8' X 12' Deck without Wheel Wells
• 1-1/2" Kickplate
• Tie Down Straps

POWERTRAIN
• Cummins QSB4.5 (148 HP)
• Cummins QSB6.7 (240 HP)
• Mercedes MB904 (147 HP)
• Mercedes MB904 (174 HP)
• Mercedes MB906 (201 HP)
• Mercedes MB906 (250 HP)
• 32,000 Series Standard Shift Transmission
• Dana 114 Front & Rear Axles
• JD1200 or JD1400 Front Axles (option)
• JD1200 or JD1400 Rear Axles with Ausco Wet Disc Brake (option)

TIRES
• 12:00 x 20 Solid Tires
• 12:00 x 20 Core Filled Tires
• 12:00 x 20 Wing Filled Tires

Carrier
• ROPS / FOPS Canopy
• ROPS / FOPS Enclosed Cab
• Cab Air Conditioning
• Cab Heat w/ Insulation
• Cab Mounted Lighting
• Air Ride Seat
• Cold Weather Package
• Air / Water Header Assembly
• Fire Extinguisher
• Fire Suppression
w/ Checkfire
• Rear Tow Bumper
• Front & Rear Tow Hooks
• Front & Rear Lifting Lugs
• Stick Steering
• Emergency Steering
• Automatic Lubrication
• Firwin Blanket

• HTI Wrap
• Rear Brake Lights
• Speedometer
• Tachometer
• 120 V Inverter
• Wheel Chocks
• Wiggins Fill
• Tire Chains
• Mud Flaps

Flatbed Truck
• 6" Kickplate
• 8" Kickplate

M60 RAMFlatbed PDF

1 file(s) 320.36 KB

Download
