Rope Tensioners / Reel Winders

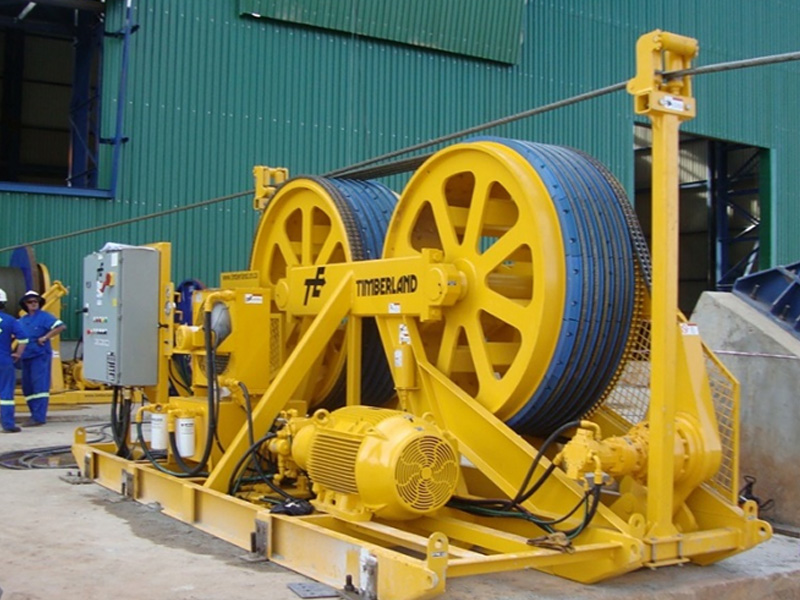

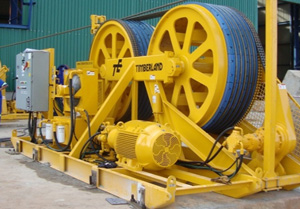

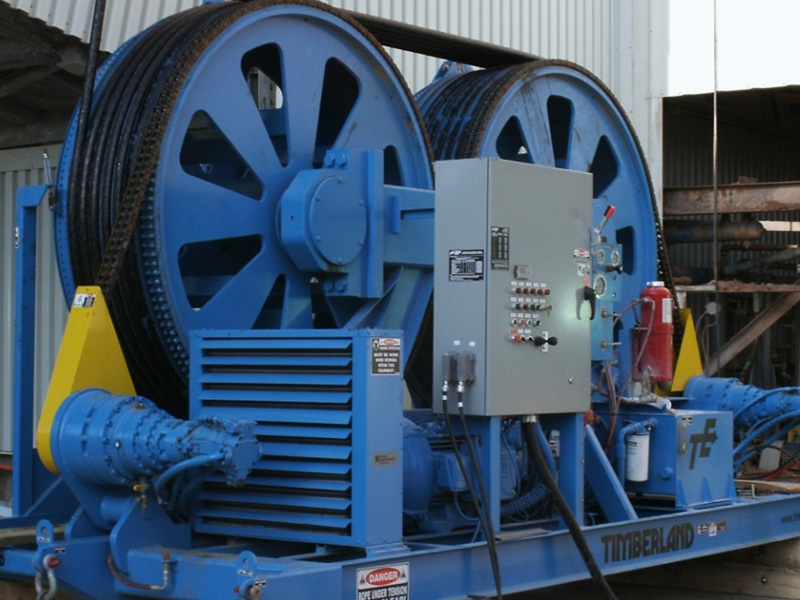

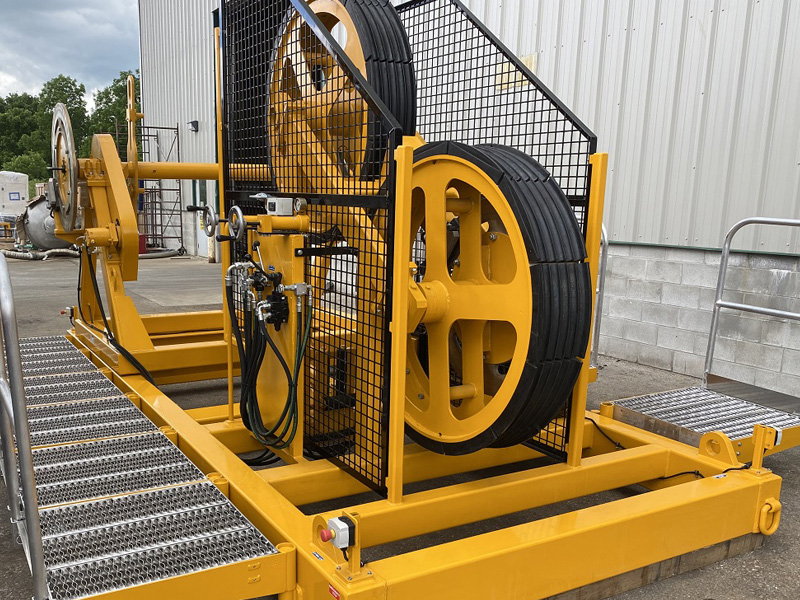

Timberland is a world leader in the design of twin bullwheel type tensioners and reelwinders used for the handling and installation of mine hoist ropes. The system is used to tension ropes that are being installed on to a hoist, or to wind in ropes that are being removed from the hoist.
| Reel Winders & Reel Stands
• Reel Weight Capacity from 4 to 80 ton
• Reel diameter and widths to suit customer rope reels
• Hydraulic drive with dedicated hydrauilc power unit or from external source
|
|

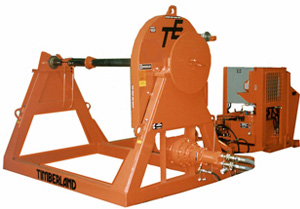

| Reel Winder with Electro-Hydraulic Power Unit
• 177,000 in-lbs drive torque provides 6,000 lbs linepull or tension at 29.5 inch reel radius
• 16,000 lbs maximum reel weisght capacity x 84 inch diameter x 61 inch wide
• 25 h.p. electro-hydraulic power unit |
