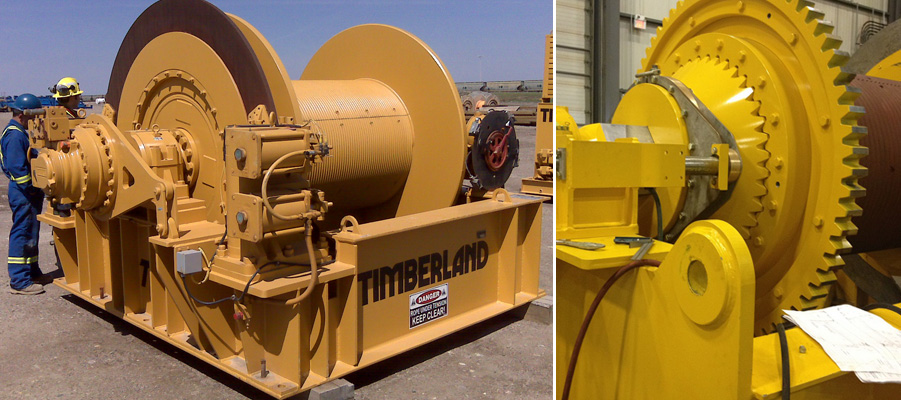

Mining Hoists

Timberland Equipment Limited designs and manufactures production, service and mucking hoists for underground mining operations and applications.

Other mining hoists include shaft sinking and tunneling, mine rescue systems as well as personnel hoists.

Standard Features

• Two independent braking systems

    1. Spring applied brake on motor
    2. Spring applied caliper brake on drum

• Timberland’s Electronic Hoist Monitoring System (EHMS) to monitor overtravel, overspeed, slack rope and provide operator feedback on these conditions via programmable display
• Electro-hydraulic
• Modular Design

Optional Features

• Diesel-hydraulic in lieu of electro-hydraulic
• Variable frequency electric drive in lieu of hydraulic
• Grooved drums with or without shells
• ANSI A10.4 compliant
• SIL 2 and international compliance

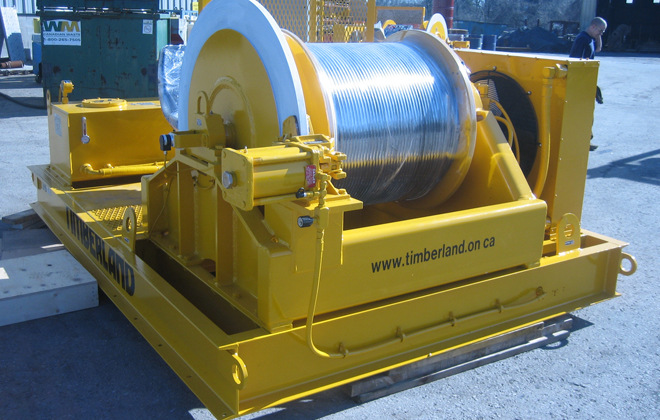

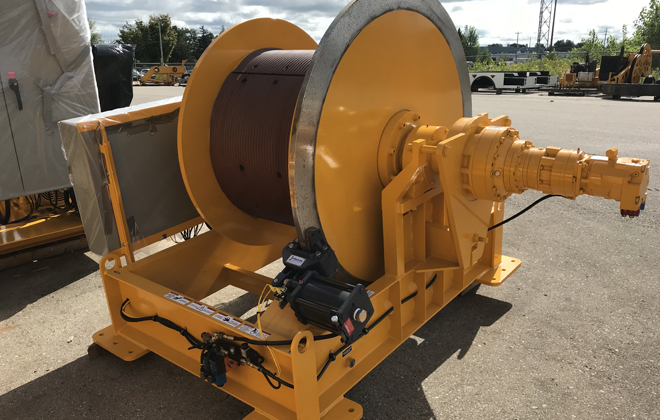

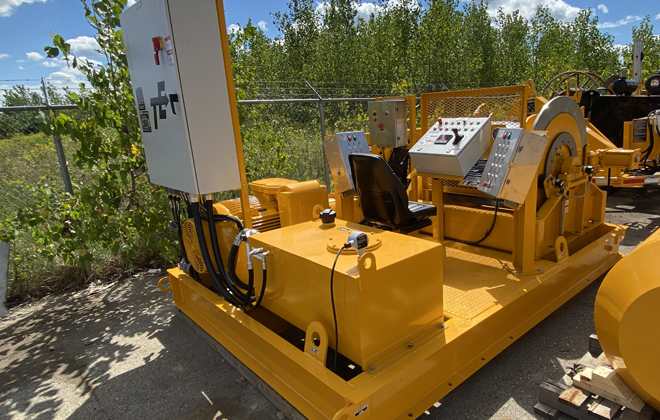

Personnel Hoists Chart

Please fill out the form to ask a question or download the cut sheet.



Have a question or need more information? We’re here to help — just fill out the form below!

=

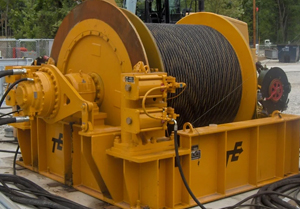

Mucking Hoist
High speed mucking hoist used in shallow shaft to excavate tunnel for Marathon Oil.
• 1000 h.p. electro-hydraulic power unit

Production Hoist
• 3000 hp Mine Production Hoist
• Double drum with clutch
• E-House, Operator’s Cab
