Personnel Escape Systems

Underground Mining: Emergency Escape Systems

Timberland leverages decades of expertise to deliver custom hoists for mining and shaft projects. From production and service hoists to personnel and emergency egress hoists, we engineer every solution for safety, reliability, and efficiency underground.

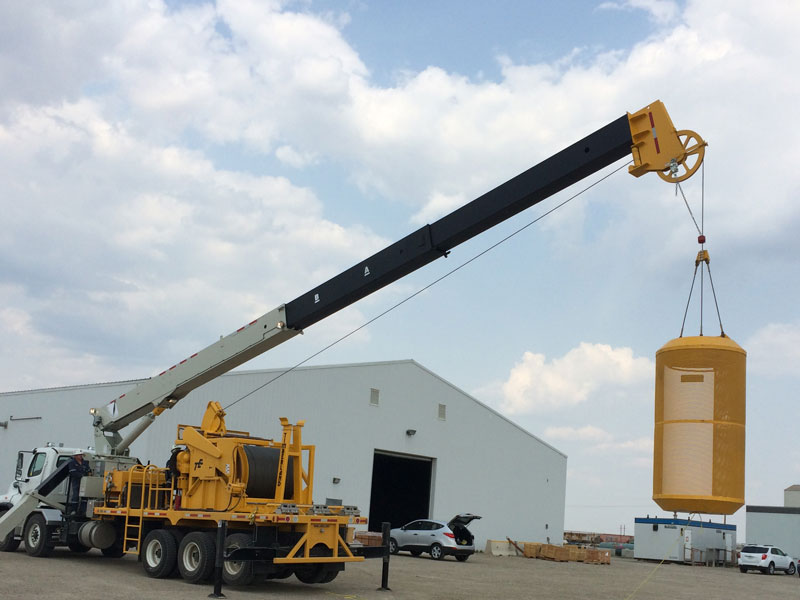

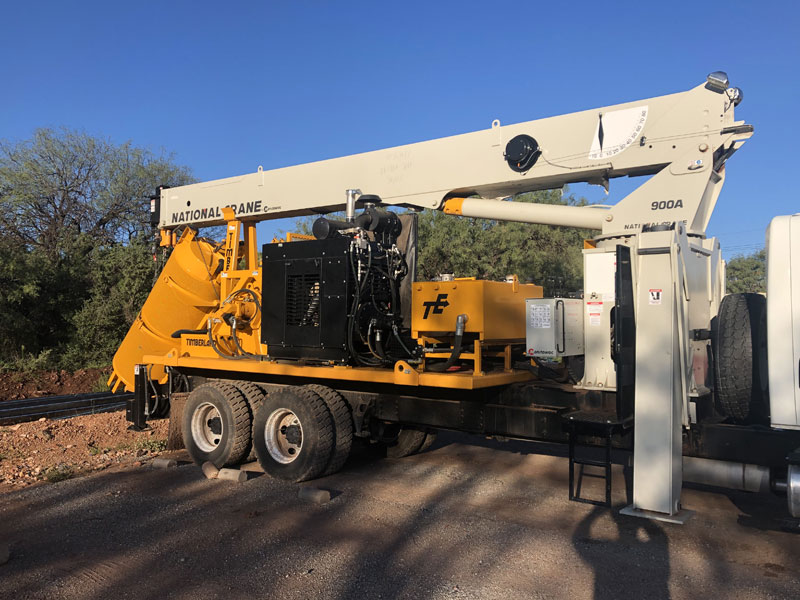

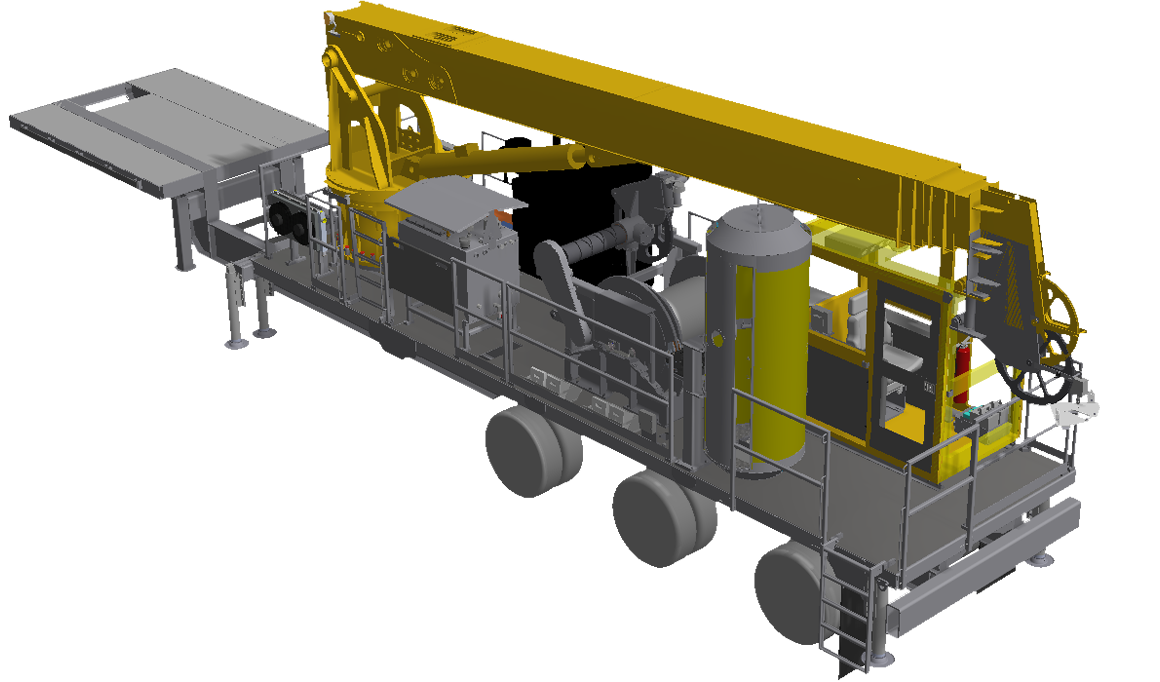

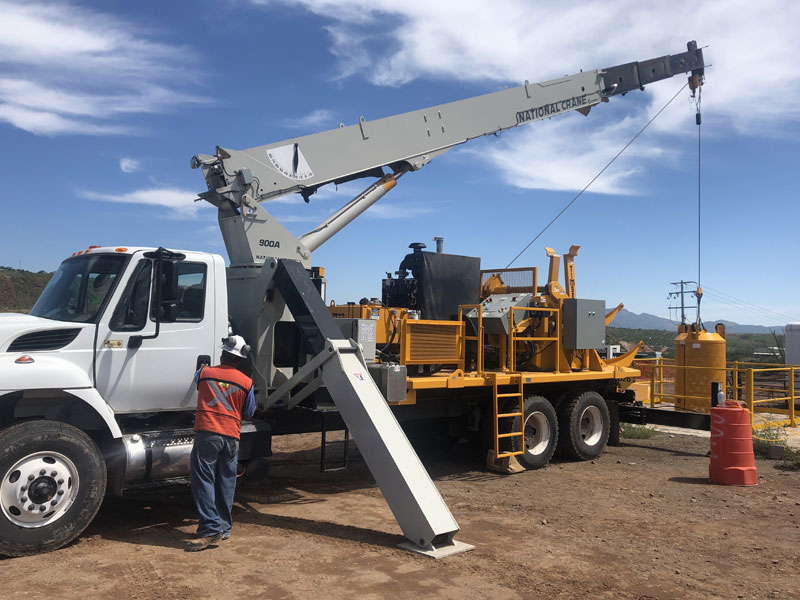

PMRH45 - Portable Mine Rescue Hoist System

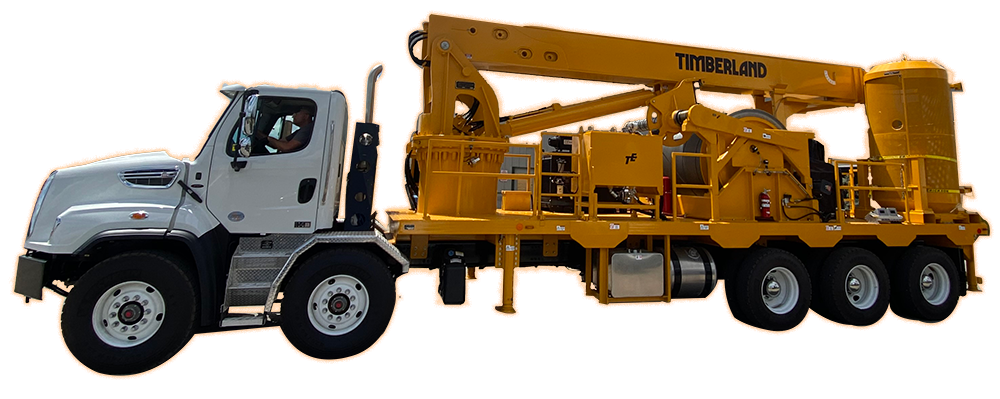

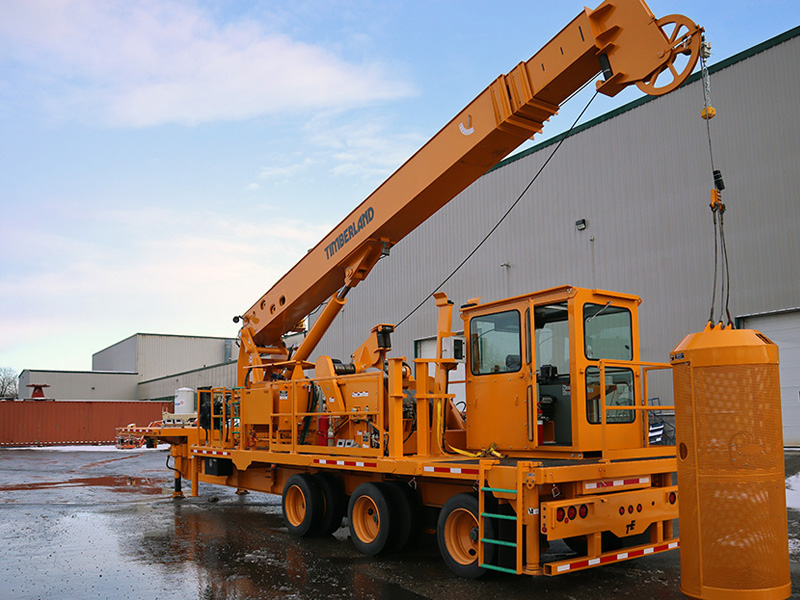

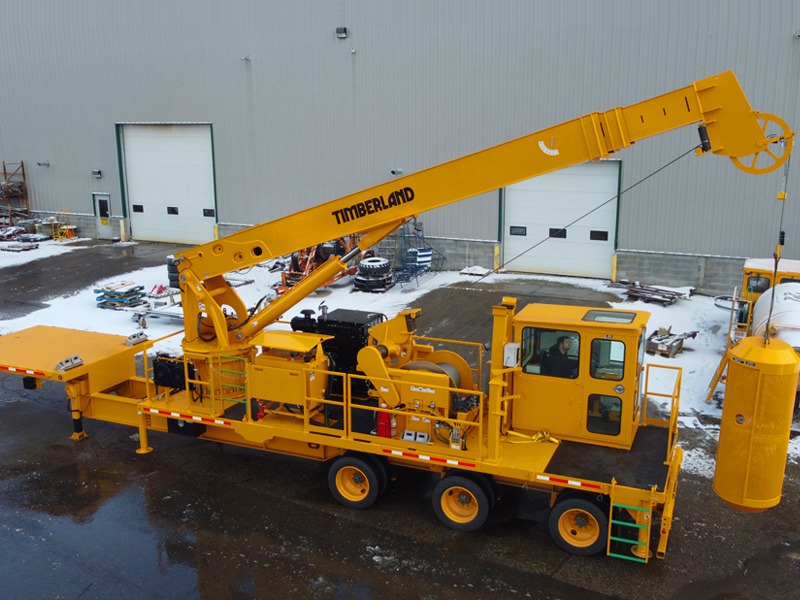

Portable Mine Rescue Hoist Systems

Standard Features
• Self-contained Trailer or Chasis powered systems
• Electric or Diesel powered
• Built to suit specific mine site requirements
• Electronic Hoist Monitoring Sytems (EHMS)
• Available operators cabin c/w HVAC

Optional Features
• Telescopic crane or A-frame boom
• Trailer enclosure
• Man-cage with communication system
• Alternate capacities to suit required shaft depths
• SIL 2 and international compliance

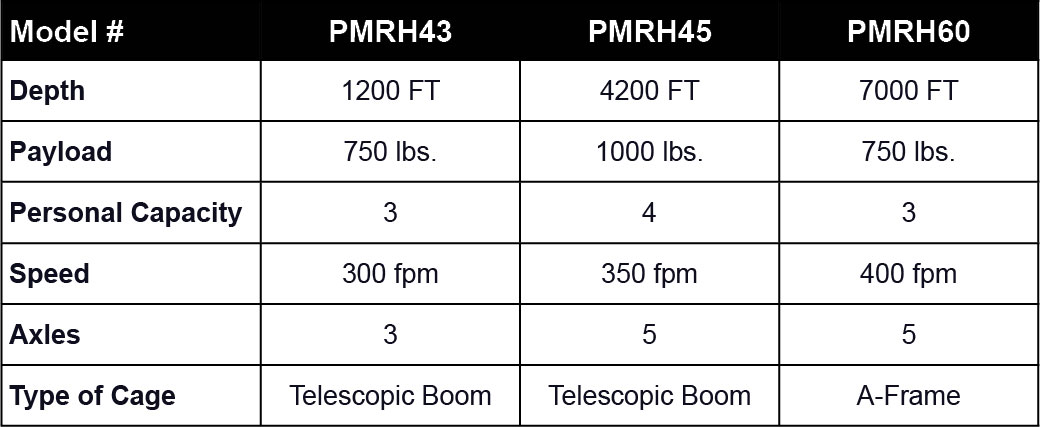

	PMRH45 • Linepull: 4,500 lbs (2,000 daN)

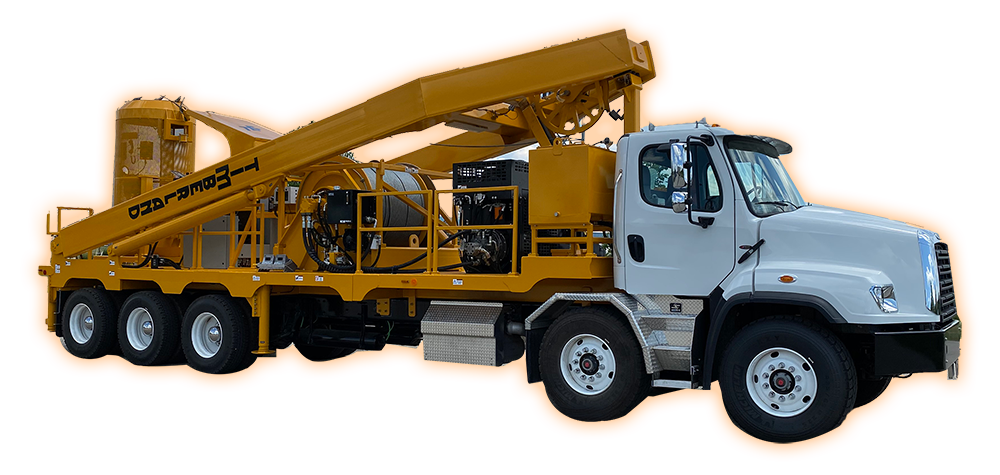

	PMRH90 • Linepull: 9,000 lbs (4,000 daN)

Please fill out the form to download the cut sheet.

Have a question or need more information? We’re here to help — just fill out the form below!

Stationary Rescue Hoist Systems

Standard Features
• Ideal for rescue and shaft inspection
• Dual braking systems, including a caliper disc brake on the drum
• Timberland’s Electronic Hoist Monitoring System (EHMS) to monitor overtravel, overspeed, slack rope and provide operator feedback on these conditions via programmable display
• Skid mounted for installation on concrete base or customer trailer

Optional Features
• Slewing boom
• Winch enclosure
• Cage with communication system
• SIL 2 and international compliance

	Model-MRH24-1-20E • 2,400 lbs (1,067 daN) maximum linepull • 152 fpm (46 m/min) maximum speed • 20 h.p.(15 kW) electric motor drive • With Slewing boom, winch enclosure • 48” (1,220 mm) Man Cage
	Model MRH30-1-110DH • 3,000 lbs (1,335 daN) maximum linepull • 296 fpm (90 m/min) maximum speed • 110 h.p.(82 kW) diesel engine hydraulic drive • With slewing boom, winch enclosure • 48” (1,220 mm) Man Cage
	Model MRH40-1-65DH • 4,000 lbs (1,780 daN) maximum linepull • 100 fpm (30 m/min) maximum speed • 65 h.p.(49 kW) diesel engine hydraulic drive • With slewing boom, winch enclosure • 42” W x 96” L x 96” H (1m x 2.4 m x 2.4 m) rectangular man cage
	Model MRH46-1-200EH • 4,600 lbs (2,050 daN) maximum linepull • 880 fpm (270 m/min) maximum speed • 200 h.p.(150 kW) electro- hydraulic drive • Skid mounted with operator seat and console • 36” (915 mm) Man Cage
	Model MRH70-1-130DH • 7,000 lbs (3,115 daN) maximum linepull • 375 fpm (115 m/min) maximum speed • 130 h.p.(97 kW) diesel engine hydraulic drive • Skid mounted with operator seat and console
