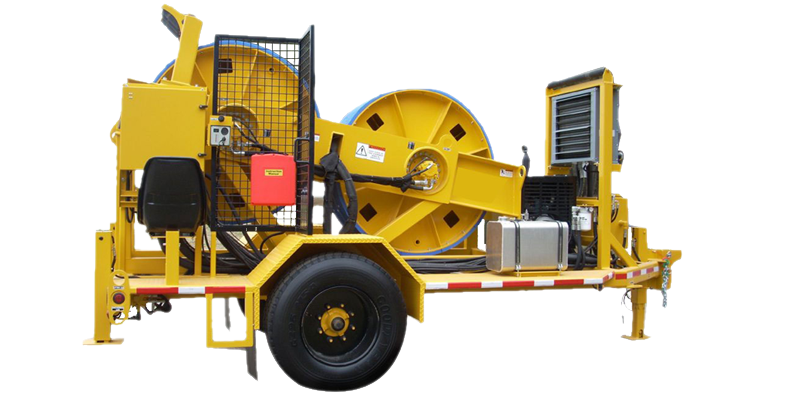

T75 Tensioner

FEATURES

• 29 hp Diesel Engine
• Maximum Pull/Tension

  • 1 x 7500 daN (16,500 lbs.)
  • 2 x 3750 daN (8250 lbs.)

Options
• Highway lighting
• Manual parking brake
• Lockable console cover
• Auxiliary hydraulic circuits to operate reel stands
• Auxiliary hydraulic circuit to operate conductor press
• Master control to operate two tensioners from one control
• Electronic controls

SPECIFICATIONS

• Bullwheel diameter 1500 mm (60”)
• Exclusive canted axis bullwheel design
• Open side design for ease of conductor loading
• Wear resistant nylon bullwheel segments
• 5 grooves per bullwheel set
• Maximum conductor diameter 43 mm (1.7”)

DIMENSIONS & WEIGHT

• Bullwheel diameter 1500 mm (60”)
• Exclusive canted axis bullwheel design
• Open side design for ease of conductor loading
• Wear resistant nylon bullwheel segments
• 5 grooves per bullwheel set
• Maximum conductor diameter 43 mm (1.7”)

PHYSICAL DIMENSIONS
• Weight (Approx.) 5200 kg (11,500 lbs)
• Length (Approx.) 4877 mm (192”)
• Width (Approx.) 2286 mm (90”)
• Height (Approx.) 2946 mm (116”)

Please fill out the form to download the cut sheet.



Please fill out the form below to ask any questions you may have.

=
