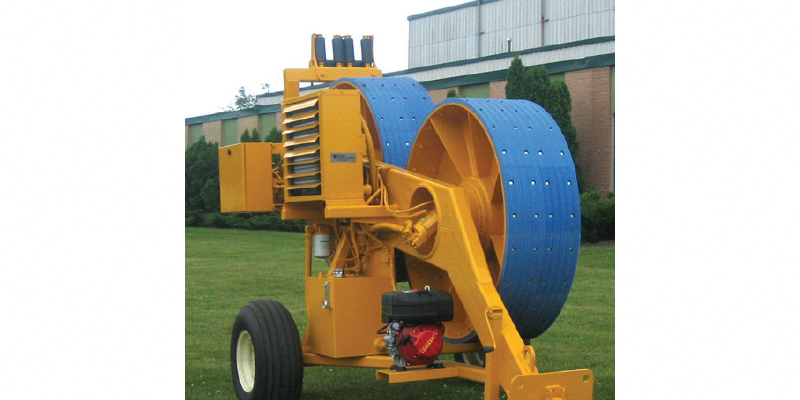

T75-1H/2DD Tensioner - Timberland Equipment - Engineered solutions for heavy lifting, pulling, conveying, tensioning

Performance Features

Maximum Pull/Tension 1 x 7500 daN (16,500 lbs.)
2 x 3750 daN (8250 lbs.)
Maximum Linespeed 5 km/hr (3.1 mph)

Tensioner Bullwheel Specifications

Bullwheel diameter 1500 mm (60”)
Exclusive canted axis bullwheel design
Open side design for ease of conductor loading
Wear resistant nylon bullwheel segments
5 grooves per bullwheel set
Maximum conductor diameter 43 mm (1.7”)

Engine Specifications

Air-cooled brand name diesel engine 5.0 kW (6.8 hp)
Mechanical Drive

Physical Dimensions

Weight (Approx.) 3,850 kg (8500 lbs)
Length (Approx.) 3670 mm (144”)
Width (Approx.) 2050 mm (81”)
Height (Approx.) 2250 mm (89”)
