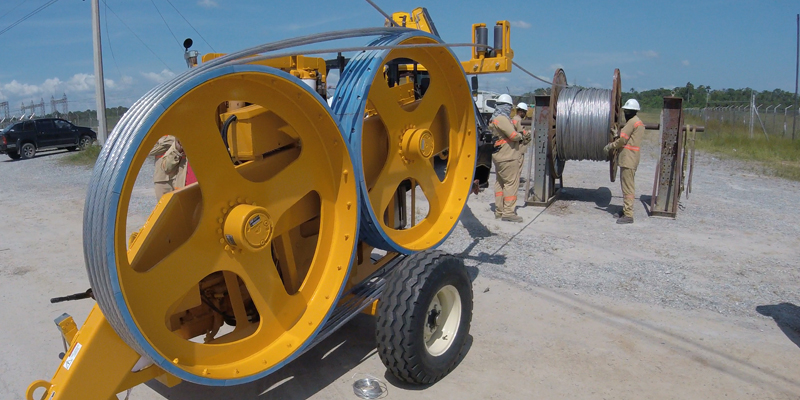

T25-1H/1DD Tensioner

Standard Equipment

• Performance Features
• Maximum continuous tension 1 x 2,500 daN (5500 lbs.)
• Maximum Linespeed 5 km/hr (3.1 mph)

Puller/Tensioner Bullwheel Specifications

• Bullwheel diameter 1500 mm (60”)
• Exclusive canted axis bullwheel design
• Open side design for ease of conductor loading
• Wear resistant nylon bullwheel segments
• 5 grooves per bullwheel set
• Maximum conductor diameter:  43 mm (1.7”)

Engine Specifications

• Air-cooled diesel engine 22 kW (29.7 hp)
• Mechanical Drive Specifications
• Direct drive, fully enclosed planetary gearbox drive
• Infinite variable speed, linepull and tensioning control
• Automatic over-pull protection system with line pull-gauge

Safety Features

• Spring applied / hydraulic pressure released brakes on bullwheel drives apply automatically in the event of hydraulic circuit pressure loss or engine shutdown.
• Overpull protection to set maximum linepull
