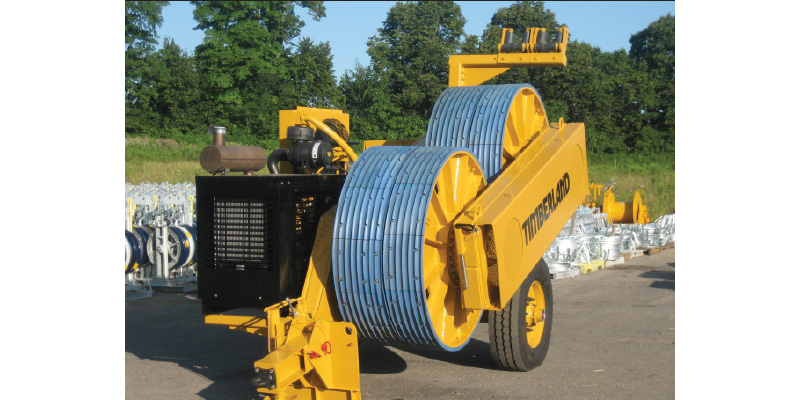

T140-2H/2DD Tensioner - Timberland Equipment - Engineered solutions for heavy lifting, pulling, conveying, tensioning

Performance Features

Maximum Pull / Tension 2 x 7,000 daN (15,400 lbs.)
1 x 14,000 daN (30,800 lbs)
Maximum Linespeed (Tensioning) 5 km/hr (3.1 mph)

Tensioner Bullwheel Specifications

Bullwheel diameter 1600 mm (63”)
Exclusive canted axis bullwheel design
Open side design for ease of conductor loading
Wear resistant nylon bullwheel segments
6 grooves per bullwheel set with 54mm groove diameter
Maximum conductor diameter 45.7 mm (1.8”)

Physical Dimensions

Length (Approx.) 4699 mm (185”)
Width (Approx.) 2324 mm (92”)
Height (Approx.) 3200 mm (126”)
Weight (Approx.) 9900 kg (21,848 lbs)

Tensioner Bull Wheel Specifications

Bull wheel diameter 1600 mm (63”)
Exclusive canted axis bull wheel design
Open side design for ease of conductor loading
Wear resistant nylon bull wheel segments
6 grooves per bull wheel set with 54mm groove diameter
Maximum conductor diameter 45.7 mm (1.8”)
