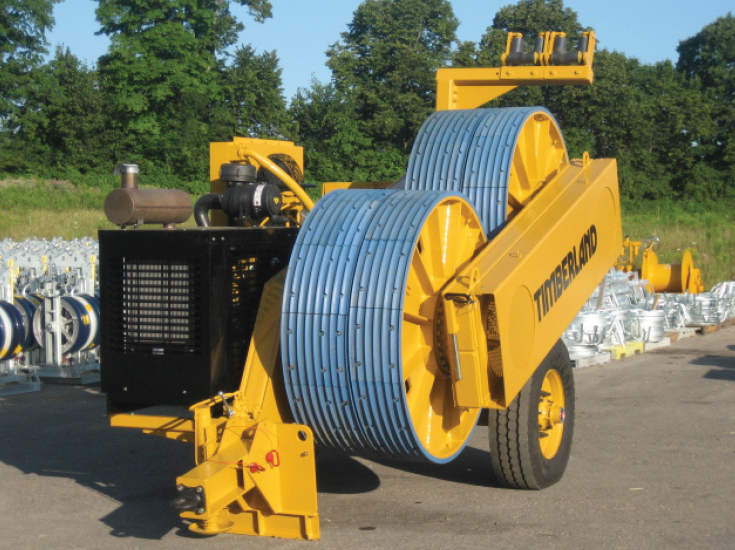

T100-2H/3DD Tensioner - Timberland Equipment - Engineered solutions for heavy lifting, pulling, conveying, tensioning

Performance Features

Maximum Pull/Tension 1 x 10,000 daN (22,000 lbs.)
2 x 5,000 daN (11,000 lbs.)
Maximum Linespeed (Tensioning) 5 km/hr (3.1 mph)

Tensioner Bullwheel Specifications

Bullwheel diameter 1500 mm (59”)
Exclusive canted axis bullwheel design
Open side design for ease of conductor loading
Wear resistant nylon bullwheel segments
5 grooves per bull wheel set
Maximum conductor diameter 43 mm (1.7”)

Physical Dimensions

Maximum Pull/Tension 3 x 3,350 daN ( 7,370 lbs.)
1 x 10,000 daN (22,000 lbs.)
Maximum Linespeed (Tensioning) 5 km/hr (3.1 mph)

Tensioner Bull Wheel Specifications

Bull wheel diameter 1600 mm (63”)
Exclusive canted axis bull wheel design
Open side design for ease of conductor loading
Wear resistant nylon bull wheel segments
6 grooves per bull wheel set with 54mm groove diameter
Maximum conductor diameter 45.7 mm (1.8”)
