Wire Rope Tensioning System

From river crossings to long-span conductor replacement

Precision. Power. Performance.
Timberland Equipment’s Wire Rope Tensioning System delivers unmatched control and reliability for conductor replacement over river crossings and other demanding applications.

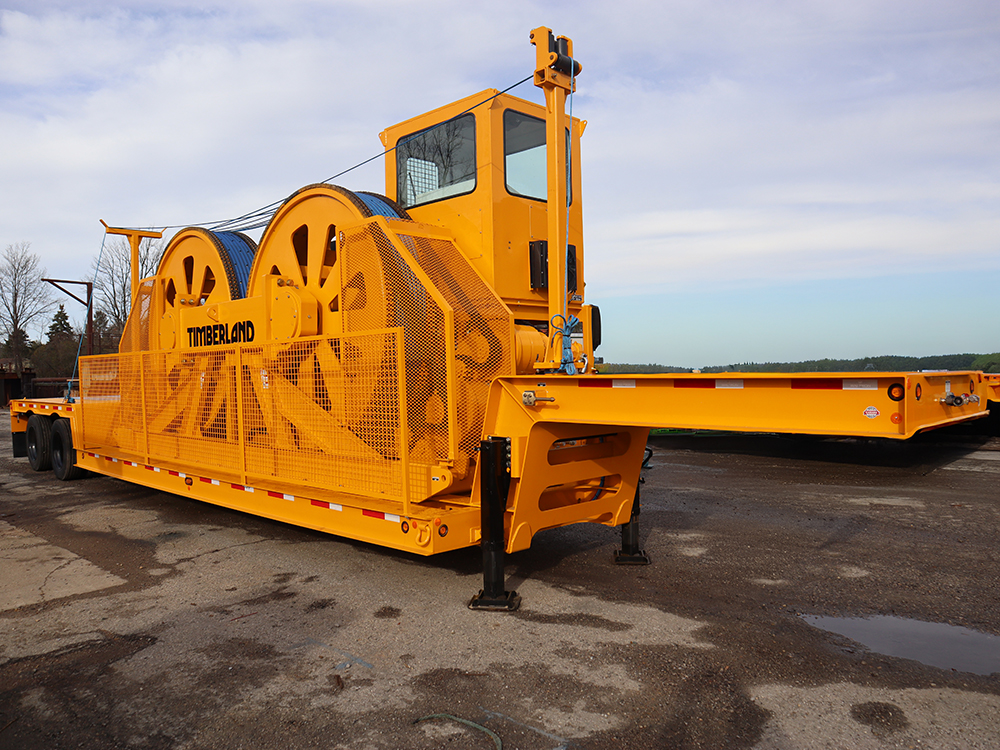

PT800-2-250DH Puller/Tensioner

Complete System

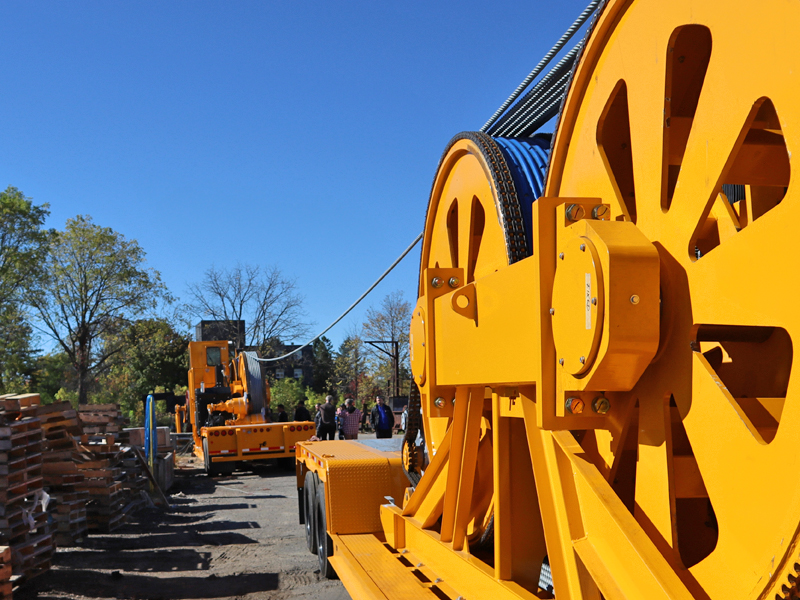

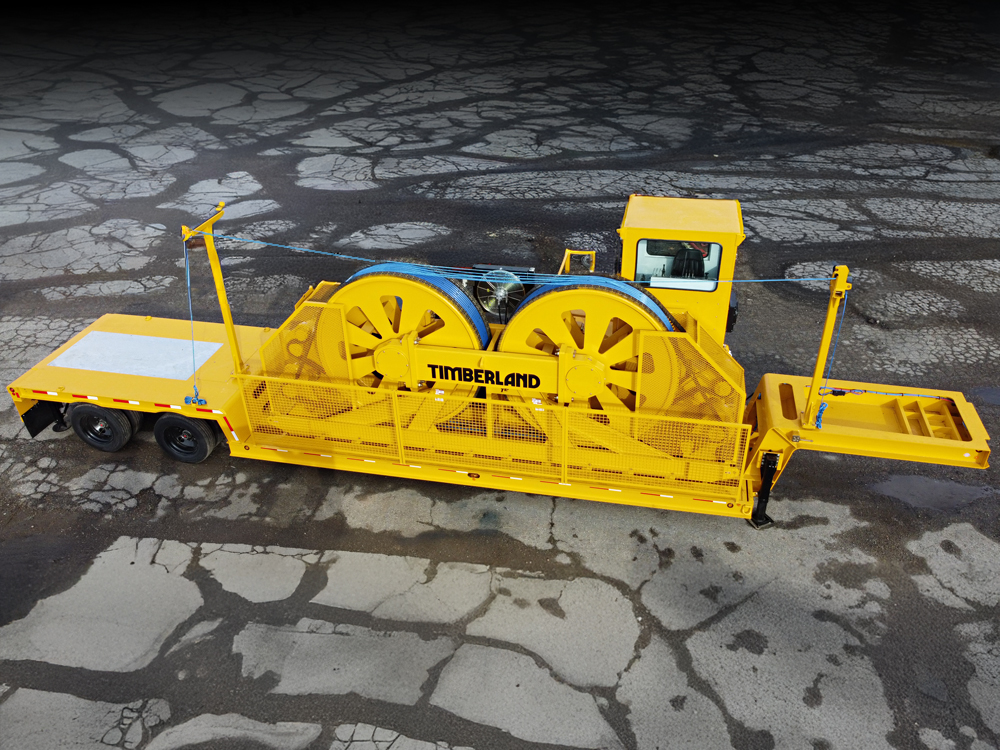

A trailor-mounted twin bullwheel Puller-Tensioner (PT800-2-250DH) works in tandem with the Reel Winder (RW70-1-H) to provide smooth, consistent tension and precise pulling performance.This unit can be mounted permanently on a fully road legal trailer for ease of transport.

Applications
• Conductor replacement over rivers and valleys
• Long-span or high-tension stringing projects
• Projects requiring precise line control.

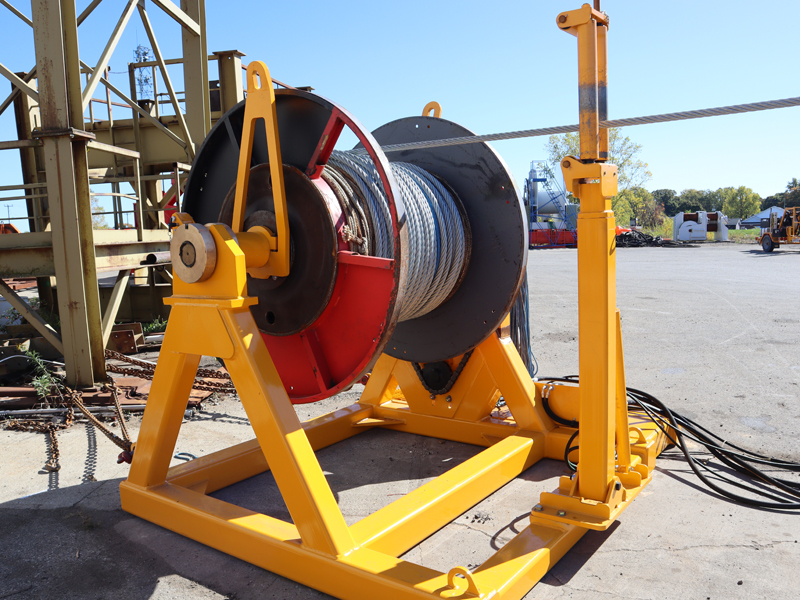

RW70-1-H Reel Winder
• Provides reel storage and tail line tension for the PT800-2-250DH
• Hydraulically powered via puller/tensioner auxiliary circuit
• Includes all interconnecting hydraulic hose

System Highlights
• Fully synchronized pulling and tensioning operation
• Hydraulic system ensures smooth, consistent conductor handling
• Designed for fast setup and teardown in remote or confined-access sites
• Rugged, field-proven Timberland construction for long service life

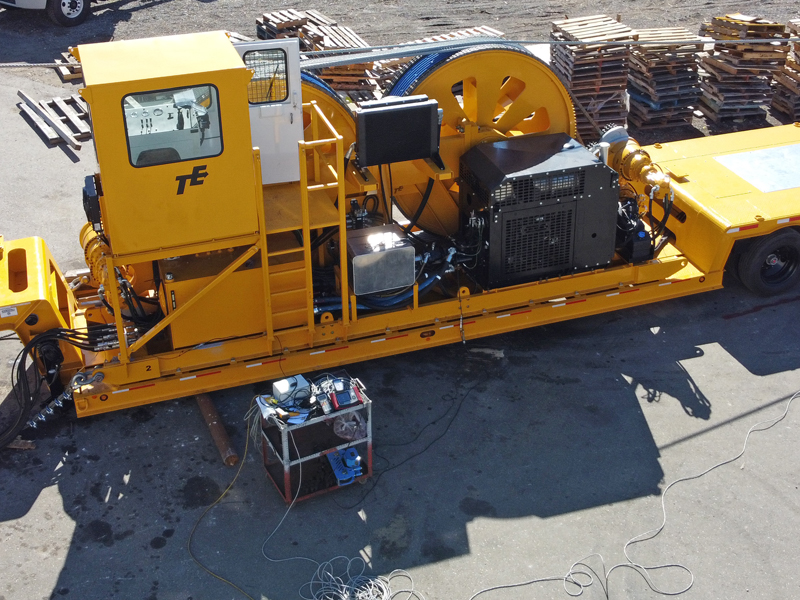

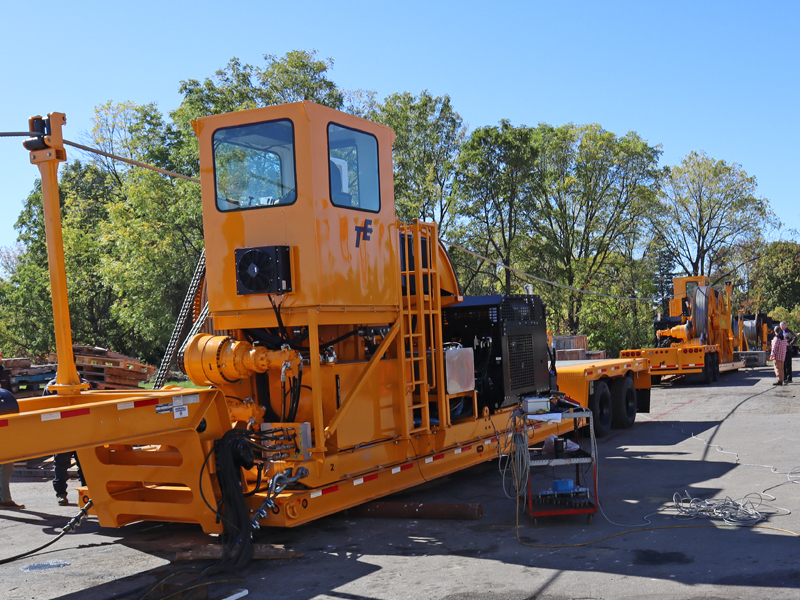

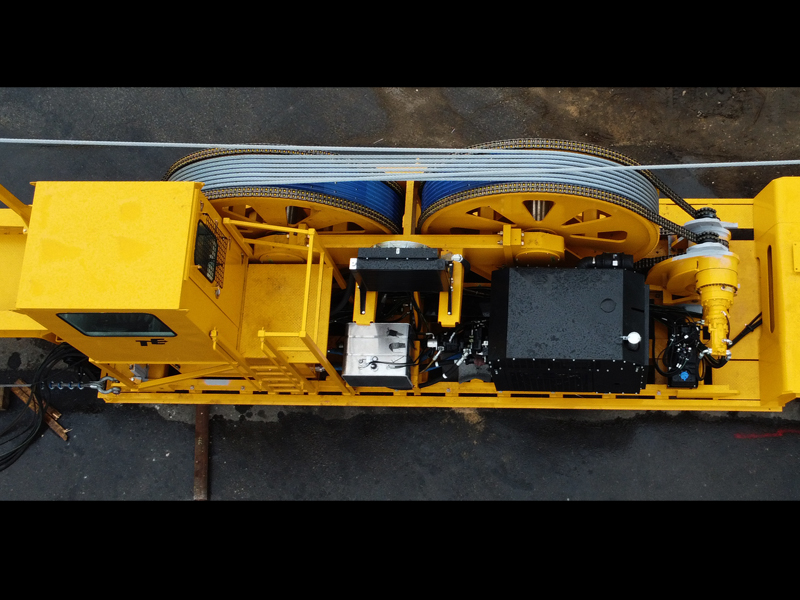

PT800-2-250DH Puller/Tensioner
• Dual-speed hydraulic drive for maximum flexibility
• Low Speed Mode: 80,000 lbs. @ 55 fpm (tensioning & pulling)
• High Speed Mode: 40,000 lbs. @ 110 fpm
• Full tension control: from 10% to 100% of rated load
• Fail Safe Automatic Braking — spring-applied, hydraulic-released
• Diesel powered for off grid operations
• Integrated on a road-legal tractor trailer

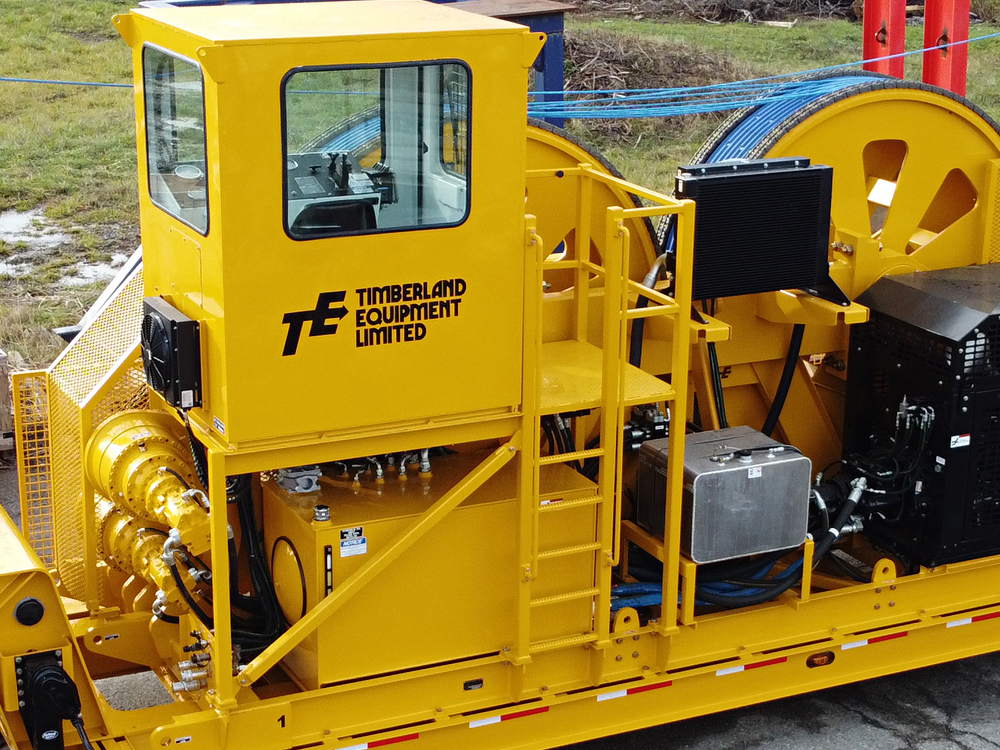

• Operator Cab: fully enclosed with heat & A/C for all-weather comfort

RW70-1-H Reel Winder
• Max Reel Capacity: 70,000 lbs. / 31751kms
• Max Reel Diameter: 120 inches / 3048mm
• Width: 120 inches / 3048mm
• Maximum Speed: 10 rpm or 116 fpm at 100 inch/ 2540mm drum barrel diameter
• Maximum Torque: 20,833 ft-lbs / 5000 lbs. linepull at 100 inches / 2540mm drum barrel diameter
