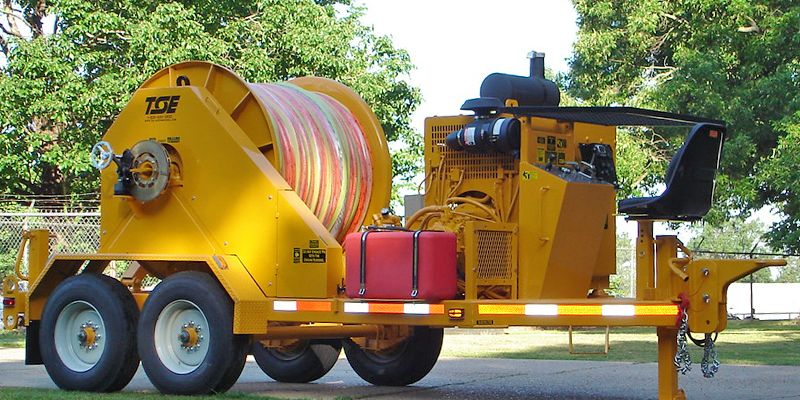

Home /Industries/Electric Power & Utilities/Distribution Equipment/Puller/Tensioners for Distribution/DPT60 Puller / Tensioners Features Specs Downloads Ask a Question Standard Features Proven hydrostatic pulling and tensioning system with hydraulic oil cooler Oil-cooled diesel engine Tandem axle with leaf spring suspension Infinitely variable linespeed and linepull control Free wheeling disconnect for high speed rope pull out Spring applied / hydraulic pressure released holding brake Central operator’s position for maximum safety and visibility Quick change reel shaft with straight vertical lift Engraved console control panel Options Bronze overspin payout brake Hydraulic overhead levelwind Operator’s seat Combination overhead / underground levelwind Underground pulling drum High speed Polemaster™ drive High speed Polemaster™ levelwind Heavy duty pulling drum Mechanical drop-leg rear jacks Hydraulic front jack Bullwheel module insert Max continuous torque: 1468 daNm (130,000 in-lbs) Max intermittent torque: 1694 daNm (150,000 in-lbs) Max line speed: 6.4 km/hr (4 mph) Max continous linepull 2766 kg (6100 lbs) Max reel diameter 1828 mm (72in) Max reel width 1422 mm (56in) Max reel weight 2722 kg (6000 lbs) Reel shaft diameter 89 mm (3-1/2”) Power (Oil-cooled diesel) 74 kW (100 hp) Axle Capacity 5443 kg (12,000 lbs) Weight (Approx. with reel, no rope) 2700 kg (5950 lbs) Length (Approx.) 5105 mm (201in) Width (Approx.) 2311 mm (91in) Height (Approx.) 1930 mm (76in) DPT-60: With 1829m of 19 mm (6000 ft of 3/4”) rope on drum Please fill out the form to download the cut sheet. Please enable JavaScript in your browser to complete this form.Please enable JavaScript in your browser to complete this form.Name *Company *City *Country *Email *Question or Comment:Submit Have a question or need more information? We’re here to help — just fill out the form below! Please enable JavaScript in your browser to complete this form.Please enable JavaScript in your browser to complete this form.Name *Company *City *Country *Email *Question or Comment:Custom Captcha * = Submit Home /Industries/Electric Power & Utilities/Distribution Equipment/Puller/Tensioners for Distribution/DPT60 Puller / Tensioners
